Einleitung
Before beginning this guide you should have completed guides on removing the back cover and separating the circuit board from the front cover.
Werkzeuge
-
-

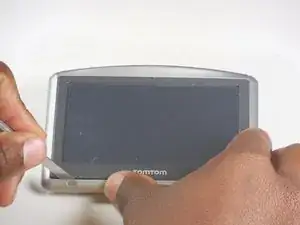

Using the palate knife tool, pry the back from the LCD screen. Apply a moderate pressure to separate them.
-
-
-
After prying both halves apart, they will be connected by two wires.
-
Carefully set the two halves next to each other making sure not to stress or damage the wires.
-
-
-

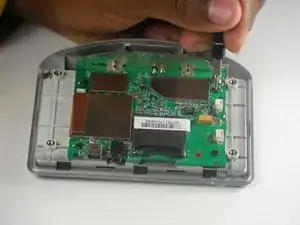

Using the tweezers separate the wires connecting the battery and speaker to the mother board.
-
-
-

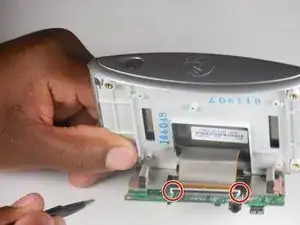

Locate the 4 .4mm screws connecting the circuit board to the front panel.
-
Use the T6 Torx screwdriver and remove the four screws.
-
-
-
Locate the ribbon cable connecting the front panel to the circuit board.
-

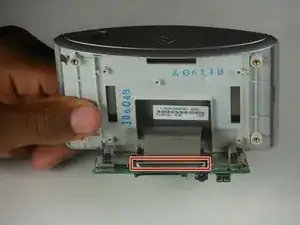

Locate the white tab locking the ribbon in place.
-

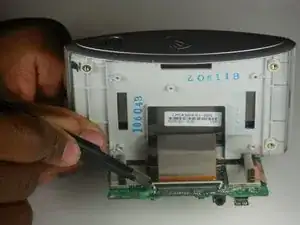

Using precision tweezers push the left and right side of the tab forward.
-
Gently pull the ribbon to disconnect the circuit board from the front panel.
-
-
-

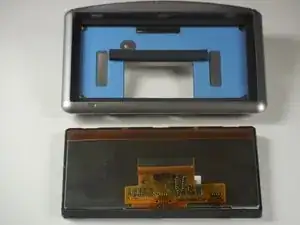

Use the palate knife to pry the screen away from the front panel.
-
Pry between the light gray board and the black boarder of the TOMTOM XL screen.
-
To reassemble your device, follow these instructions in reverse order.
