TomTom VIA 1530 TM Battery Replacement

Geschrieben von: Jennifer Zakaria
  • Kommentare: 0
TomTom VIA 1530 TM Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

The TomTom VIA 1530 TM battery can wear out over time due to overuse or overheating and will stop working completely. This guide will show how to properly remove it.

  1. mAOEQZ1BJJnUb345
    mAOEQZ1BJJnUb345
    cJHiDSFrRMS2CoOG

    • Position the device so that the underside is facing up.

    • Tilt the EasyPort Mount slightly upward and rotate it counterclockwise 180 degrees from the initial position.

    • Firmly grab the EasyPort Mount and remove it.

    • If it does not dislodge easily, gently twist the EasyPort Mount, applying increasing pressure until it does.

  2. VALeIFqlKh3OITNX
    VALeIFqlKh3OITNX
    iGpH32pnc6JsoqJZ

    • Turn the device 180 degrees so the screw in the EasyPort Mount compartment is on top.

    • Remove the 2mm screw beneath the EasyPort Mount compartment with the Torx T-5 head Screwdriver.

  3. MccbpDTHOW1CvSlr
    MccbpDTHOW1CvSlr
    icwMKCa54InEm1TS

    • Flip the device over so that the screen is facing up.

    • Wedge the plastic opening tool between the top and bottom of the device's frame, gently sliding it around the outside edge.

    • It may be easier to start at one of the corners.

    • The gold ribbon cable connecting the screen to the motherboard is fragile and tears easily.

    • This specific device's ribbon cable is torn.

  4. rukAE2YLllpGrAnI
    rukAE2YLllpGrAnI
    oncTwAqtSW2jC6xv

    • Carefully slide the screen forward, revealing the lower portion of the motherboard.

    • Remove the 3.6mm screw using the JIS #00 Screwdriver.

    • Rotate the device 180 degrees, carefully slide back the screen, and remove the remaining two screws.

  5. bMV6rLHlVKJljA61
    bMV6rLHlVKJljA61
    sWi3dNVOalQEMmPh
    xRXXZUMYPidW2nEB

    • Disconnect the battery and speaker cables.

    • Unlatch the motherboard from the case.

  6. pnrXcdoUAJXcYAuk
    pnrXcdoUAJXcYAuk
    Ek2BIWPXOmpWIwSN
    5vBBJQbmSxCnmphB

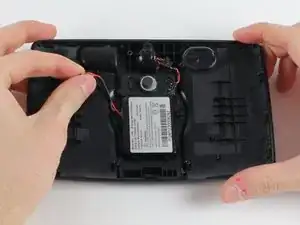

    • Free the battery cable from its notched position.

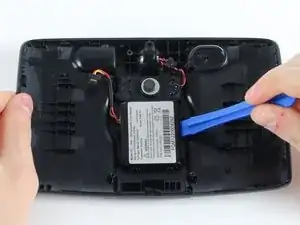

    • Use the plastic opening tool to separate the battery from the case.

    • The tearing sound is the adhesive holding the battery tot he case. It will re-stick when you put the battery back in.

Abschluss

To reassemble your device, follow these instructions in reverse order.
