Einleitung

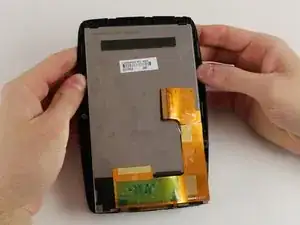

The TomTom touch screen can stop working or stop responding altogether. This guide will show how to properly remove it.

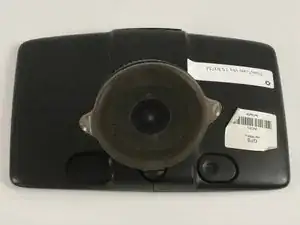

  1. mAOEQZ1BJJnUb345
    mAOEQZ1BJJnUb345
    cJHiDSFrRMS2CoOG

    • Position the device so that the underside is facing up.

    • Tilt the EasyPort Mount slightly upward and rotate it counterclockwise 180 degrees from the initial position.

    • Firmly grab the EasyPort Mount and remove it.

    • If it does not dislodge easily, gently twist the EasyPort Mount, applying increasing pressure until it does.

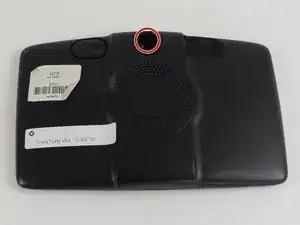

  2. VALeIFqlKh3OITNX
    VALeIFqlKh3OITNX

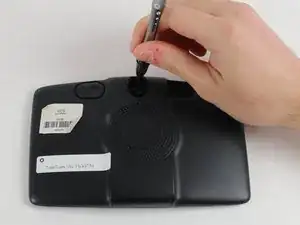

    iGpH32pnc6JsoqJZ

    • Turn the device 180 degrees so the screw in the EasyPort Mount compartment is on top.

    • Remove the 2mm screw beneath the EasyPort Mount compartment with the Torx T-5 head Screwdriver.

  3. MccbpDTHOW1CvSlr
    MccbpDTHOW1CvSlr

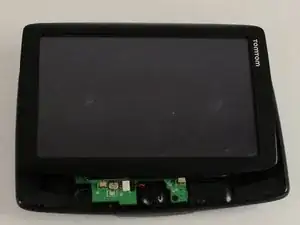

    icwMKCa54InEm1TS

    • Flip the device over so that the screen is facing up.

    • Wedge the plastic opening tool between the top and bottom of the device's frame, gently sliding it around the outside edge.

    • It may be easier to start at one of the corners.

    • The gold ribbon cable connecting the screen to the motherboard is fragile and tears easily.

    • This specific device's ribbon cable is torn.

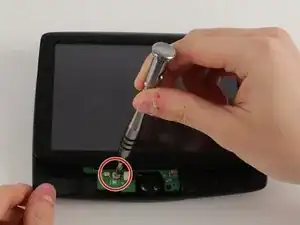

  4. rukAE2YLllpGrAnI
    rukAE2YLllpGrAnI

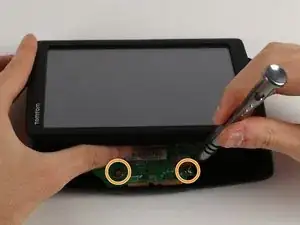

    oncTwAqtSW2jC6xv

    • Carefully slide the screen forward, revealing the lower portion of the motherboard.

    • Remove the 3.6mm screw using the JIS #00 Screwdriver.

    • Rotate the device 180 degrees, carefully slide back the screen, and remove the remaining two screws.

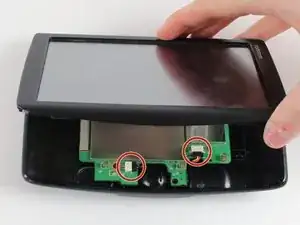

  5. bMV6rLHlVKJljA61
    bMV6rLHlVKJljA61
    sWi3dNVOalQEMmPh

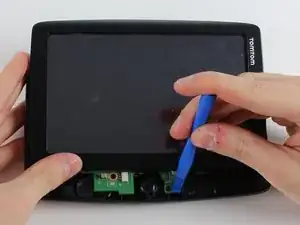

    xRXXZUMYPidW2nEB

    • Disconnect the battery and speaker cables.

    • Unlatch the motherboard from the case.

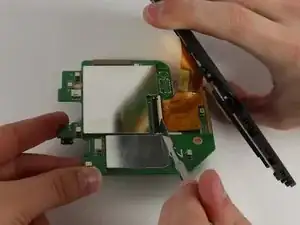

  6. 3xVHMDrBZFTkWoiH
    3xVHMDrBZFTkWoiH

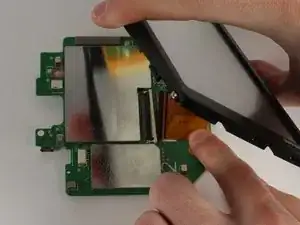

    OvuGgKivGOLMDjvE

    • Wedge a spudger between the white plastic latch and the black connection port, disconnecting the gold ribbon cable.

    • Slide the gold ribbon cable out of the port.

    Maybe add the picture of the motherboard and screen separated

    Dakota Baker -

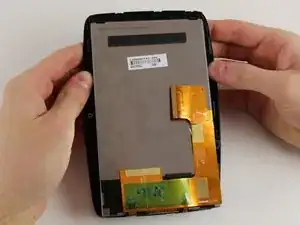

  7. HjVkWKCjMPpR4PKY
    HjVkWKCjMPpR4PKY
    iL2LksthBwlsq1Fb
    EY2cmJFWmhPD4ZqZ

    • Use a plastic opening tool to unlatch the screen from its case.

    • We recommend starting on the side with the gold ribbon cable as the latches are more tricky.

    • Unlatch the screen corner by corner instead of an entire side at one time.

    • The tearing sound is the adhesive holding the screen to the case. It will re-stick when you put the screen together.

    It may be smart to get rid of the first photo and add a photo with the screen and case separated

    Dakota Baker -

Abschluss

To reassemble your device, follow these instructions in reverse order.
