TomTom XXL 540 Back Panel Replacement

Geschrieben von: Mike Sollars
  • Kommentare: 0
TomTom XXL 540 Back Panel Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

This guide shows how to replace the back panel on a TomTom XXL 540.

  1. BfxOnApTYB51LtUu
    BfxOnApTYB51LtUu
    fADbO6SqqyKrZIGw

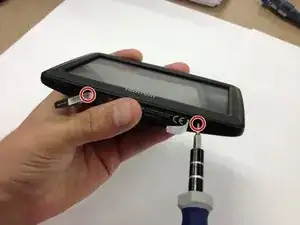

    • Using tweezers, peel back the sticker on the bottom of the device to reveal the two T5 screws.

    • Use the T5 Torx screwdriver to unscrew the two T5 screws.

  2. EoZEeoAHGIEPZXCS

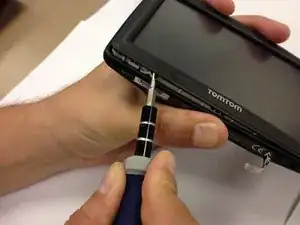

    • Use a flat edge screwdriver to pry open the faceplate.

  3. iiq2XsNcEUGOMvWf

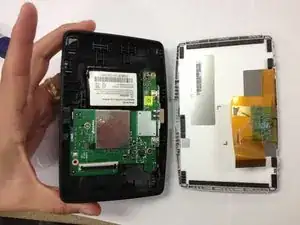

    • Release the ribbon cable that connects the two sides.

  4. bDMR1fpjZxSg2V1m

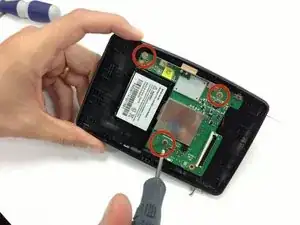

    • Identify the green motherboard.

    • Use the T5 Torx screwdriver to unscrew the three T5 screws that hold the motherboard in place.

  5. cgBBuPotSbxBZon1

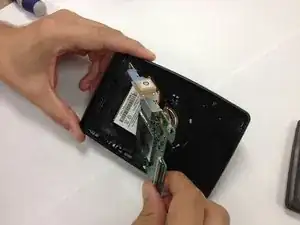

    • Remove and disconnect the motherboard and battery from the back panel.

  6. yTf1VNHRNAsILeeJ

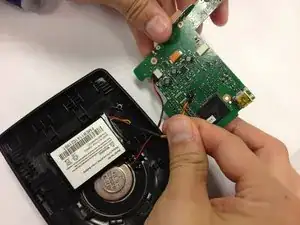

    • Attach the motherboard and battery to the new back panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.
