Toro Cement Mixer 68009HD 2018 Engine Plate Replacement

Geschrieben von: Arthur Shi
  • Kommentare: 0
Toro Cement Mixer 68009HD 2018 Engine Plate Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide shows how to remove and replace the engine plate for the Toro Cement Mixer 68009HD. This allows you to access the belts and pulleys.

  1. QRu5sAKCYl3BAajS
    QRu5sAKCYl3BAajS
    6XDIahrXsDsc5ttc

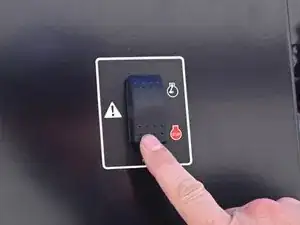

    • Before you begin, press the engine-stop switch to turn off the engine.

  2. ihA3blWOJh16NfLY
    ihA3blWOJh16NfLY
    qDBNEGO2EqsrJZny
    a1mXqaERn5EPNKfq

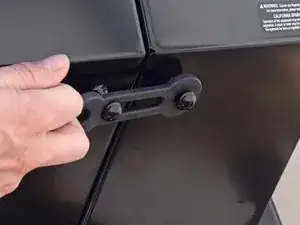

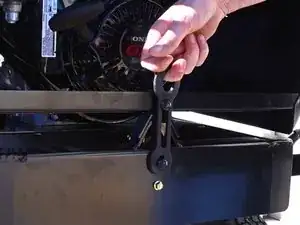

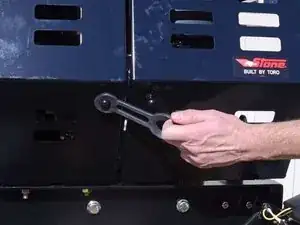

    • Unlatch the three rubber straps securing the cowl.

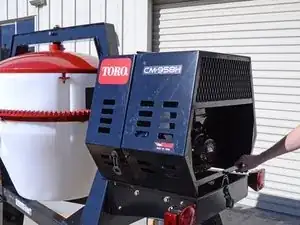

  3. t6EPSOKP5cZQ4j5c
    t6EPSOKP5cZQ4j5c
    BBmw2qjdHb4le5nr
    LOKUGjo5BlbTqqgL

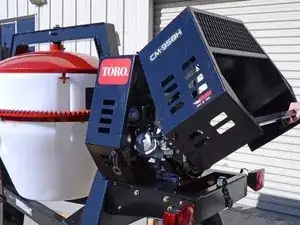

    • Swing the cowl up until it rests securely on the frame.

  4. urjQolHXf1Ut5agC
    urjQolHXf1Ut5agC
    6rJqTtNYfyDNIAGi

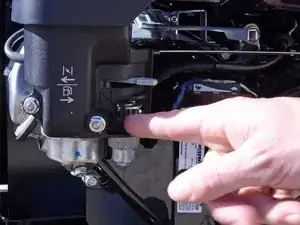

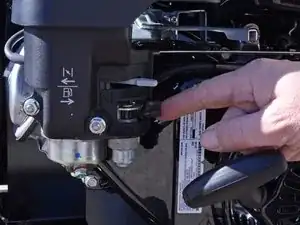

    • Slide the fuel cutoff lever to the left to cut the fuel supply to the engine.

  5. fX2CwCabESHiPPWY
    fX2CwCabESHiPPWY
    gBiPkBWFfRE5X5Bf

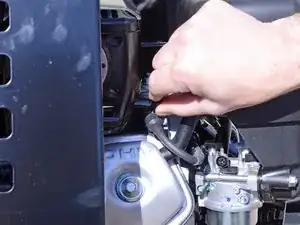

    • Grab the plastic housing at the end of the spark plug wire.

    • Pull firmly to disconnect the wire from the spark plug.

  6. BXcCV3bTxKId2Ecu
    BXcCV3bTxKId2Ecu
    MrhufD4mhZVRyETo

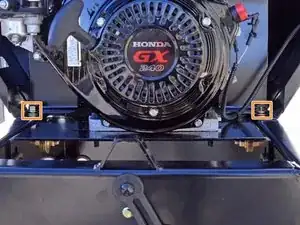

    • Remove the four fasteners securing the engine plate:

    • Two 14 mm bolts

    • Two 3/4 inch nuts

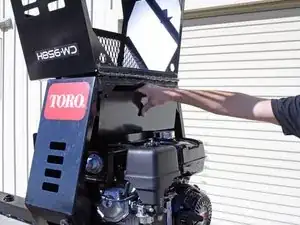

  7. IWcjKPZ5MCS6aMWG
    IWcjKPZ5MCS6aMWG
    VIEoVqyLBPfIBwvC
    gDW5BBKDHlJQwCpw

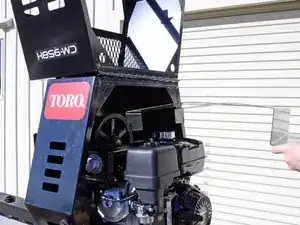

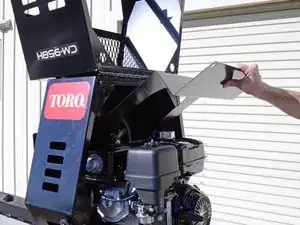

    • Slide the engine plate up and out of the device to remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
