Toro Cement Mixer 68009HD 2018 Pulley Replacement

Geschrieben von: Arthur Shi
  • Kommentare: 0
Toro Cement Mixer 68009HD 2018 Pulley Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

20 - 30 Minuten

Einleitung

This guide shows how to remove and replace the pulley or sheave for the Toro Cement Mixer 68009HD.

  1. QRu5sAKCYl3BAajS
    QRu5sAKCYl3BAajS
    6XDIahrXsDsc5ttc

    • Before you begin, press the engine-stop switch to turn off the engine.

  2. ihA3blWOJh16NfLY
    ihA3blWOJh16NfLY
    qDBNEGO2EqsrJZny
    a1mXqaERn5EPNKfq

    • Unlatch the three rubber straps securing the cowl.

  3. t6EPSOKP5cZQ4j5c
    t6EPSOKP5cZQ4j5c
    BBmw2qjdHb4le5nr
    LOKUGjo5BlbTqqgL

    • Swing the cowl up until it rests securely on the frame.

  4. urjQolHXf1Ut5agC
    urjQolHXf1Ut5agC
    6rJqTtNYfyDNIAGi

    • Slide the fuel cutoff lever to the left to cut the fuel supply to the engine.

  5. fX2CwCabESHiPPWY
    fX2CwCabESHiPPWY
    gBiPkBWFfRE5X5Bf

    • Grab the plastic housing at the end of the spark plug wire.

    • Pull firmly to disconnect the wire from the spark plug.

  6. BXcCV3bTxKId2Ecu
    BXcCV3bTxKId2Ecu
    MrhufD4mhZVRyETo

    • Remove the four fasteners securing the engine plate:

    • Two 14 mm bolts

    • Two 3/4 inch nuts

  7. IWcjKPZ5MCS6aMWG
    IWcjKPZ5MCS6aMWG
    VIEoVqyLBPfIBwvC
    gDW5BBKDHlJQwCpw

    • Slide the engine plate up and out of the device to remove it.

  8. XLpboolNH6EBElXh
    XLpboolNH6EBElXh
    e54NdHFPMcHHgEja

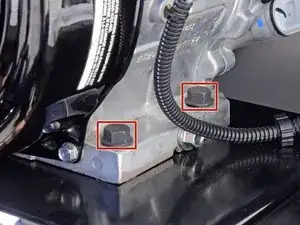

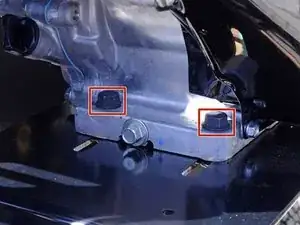

    • Use a 3/4 inch wrench to loosen the four bolts securing the engine to the frame.

    • You don't need to fully remove these bolts—loosen them enough to create slack in order to remove and replace the belts.

  9. ej3iJtcobvkAQFBi
    ej3iJtcobvkAQFBi
    ILDt3xIehYUvZFbq
    hYaCNIWDEe1B3CYC

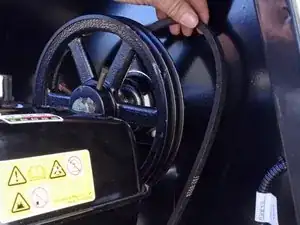

    • If you are replacing the belts, you can choose to cut the old ones to remove them.

    • Slide the belts off from the pulleys and remove them.

    • If you have trouble sliding the belts off, further loosen the four engine bolts to create more slack.

  10. prnhlV2aiMs3IQhP
    prnhlV2aiMs3IQhP
    hu1oR3mgNBvZipW1

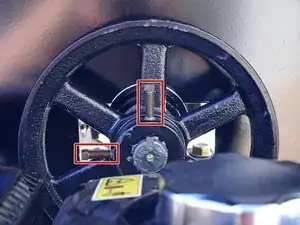

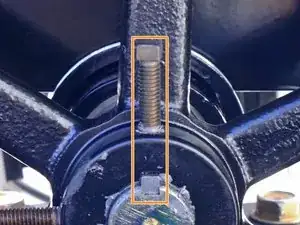

    • Use a crescent wrench to loosen the two set screws on the pulley.

    • Reassembly tip: The pulley is keyed to install in only one position.

  11. FDeZElRPZm5SRM4u
    FDeZElRPZm5SRM4u
    muQYQSZ4WAOQaHa2
    dPiQYyEmLSNosjBh

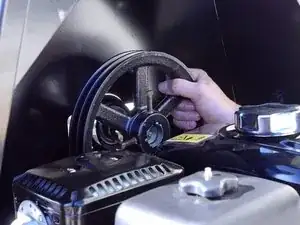

    • Slide the pulley off the axle and remove it.

  12. SiLQtx3V4hVVg6kb
    SiLQtx3V4hVVg6kb
    5ErChHDCwFBN5JAL

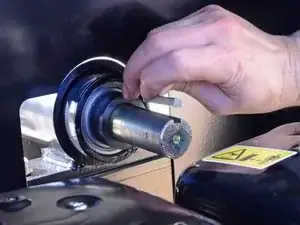

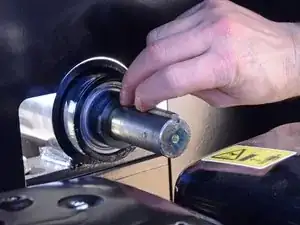

    • Remove the key from the axle.

Abschluss

To reassemble your device, follow these instructions in reverse order.
