Toro Cement Mixer 68009HD 2018 Spindle Replacement

Geschrieben von: Arthur Shi
  • Kommentare: 0
Toro Cement Mixer 68009HD 2018 Spindle Replacement

Schwierigkeitsgrad

Moderate

Schritte

19

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

This guide shows how to remove and replace the spindle for the Toro Cement Mixer 68009HD.

The spindle attaches the tub to the yoke and allows the tub to spin freely.

Warning: The tub and dish are both extremely heavy and require at least two people to lift them. Be sure to practice safe lifting techniques.

  1. QRu5sAKCYl3BAajS
    QRu5sAKCYl3BAajS
    6XDIahrXsDsc5ttc

    • Before you begin, press the engine-stop switch to turn off the engine.

  2. ihA3blWOJh16NfLY
    ihA3blWOJh16NfLY
    qDBNEGO2EqsrJZny
    a1mXqaERn5EPNKfq

    • Unlatch the three rubber straps securing the cowl.

  3. t6EPSOKP5cZQ4j5c
    t6EPSOKP5cZQ4j5c
    BBmw2qjdHb4le5nr
    LOKUGjo5BlbTqqgL

    • Swing the cowl up until it rests securely on the frame.

  4. urjQolHXf1Ut5agC
    urjQolHXf1Ut5agC
    6rJqTtNYfyDNIAGi

    • Slide the fuel cutoff lever to the left to cut the fuel supply to the engine.

  5. fX2CwCabESHiPPWY
    fX2CwCabESHiPPWY
    gBiPkBWFfRE5X5Bf

    • Grab the plastic housing at the end of the spark plug wire.

    • Pull firmly to disconnect the wire from the spark plug.

  6. hUjssd2Iksy4UImC
    hUjssd2Iksy4UImC
    6A1sTjQGW5Hsd2ZD

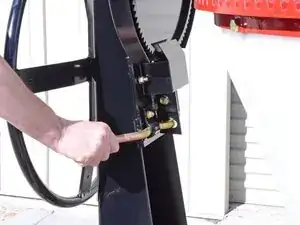

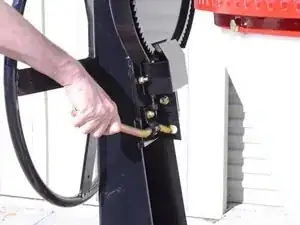

    • Pull up on the brake lever to disengage the brake.

  7. ZUnB2RkieNYoZTCP
    ZUnB2RkieNYoZTCP
    BUN5nnwkX6ZHh1Ur
    cwVM2yhdJJSlrSUS

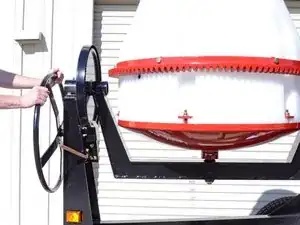

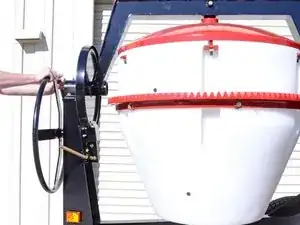

    • Rotate the tub until the yoke and dish assembly sit directly below the tub.

  8. qbUYQa1Z2GWodDtq
    qbUYQa1Z2GWodDtq
    sbwQ66ITadj1hHMg

    • Push down on the brake lever to re-engage the brake.

    • Make sure that the brake is fully engaged.

  9. 5xFY1WyCON1VF2pW
    5xFY1WyCON1VF2pW
    q2hkVXhAKx4Ac2CO
    2MydtXZ2LEnjX6c3

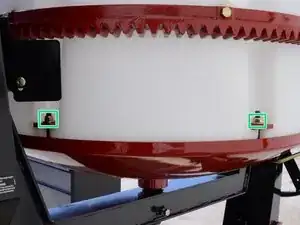

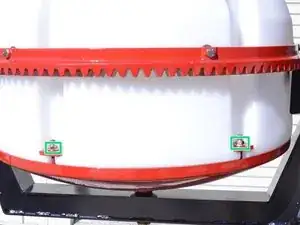

    • Use a 3/4 inch socket to remove the six nuts securing the tub to the dish.

  10. YUNPB1b23QJUOsrS

    • Remove the six drum clamp plates from the tub mounting points.

  11. HLIsAfG5tGPemJi2

    • Lift the tub up slightly by the gear ring to loosen the tub from the dish.

  12. dsxyV4jIcHnWpcvJ
    dsxyV4jIcHnWpcvJ
    2UgkveovOFFvKaQF
    dAqoAKQWIuRnOTbb

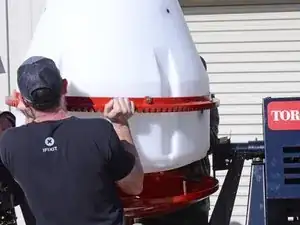

    • The tub is extremely heavy and requires at least two people to lift it. Be sure to practice safe lifting techniques.

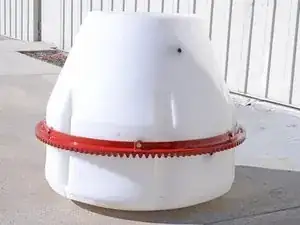

    • Lift the tub straight up from the dish and remove it from the device.

  13. Sqy3XSBTGHcsV6nd
    Sqy3XSBTGHcsV6nd
    2GyCubiucKtfOBcf

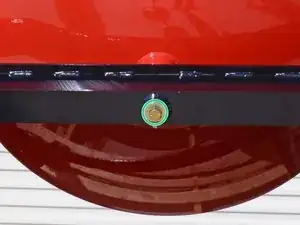

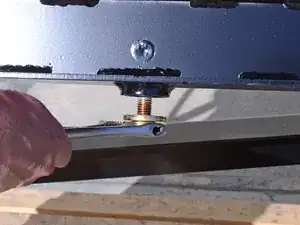

    • Use a large crescent wrench to remove the bolt securing the dish to the bottom of the yoke.

  14. 4SfjCxFeQsmjeUf5

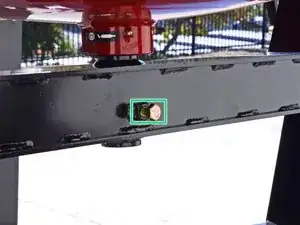

    • Use a 3/4 inch socket to remove the lock bolt from the yoke.

  15. 25kraUdTRIqWjBJr
    25kraUdTRIqWjBJr
    ubYJG1pqFIQeLopX
    FH4liJ4VmbBlSJ1W

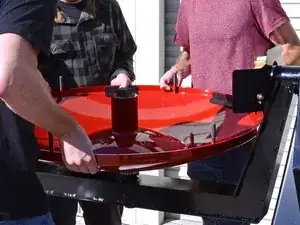

    • The dish is extremely heavy and requires at least two people to lift it. Be sure to practice safe lifting techniques.

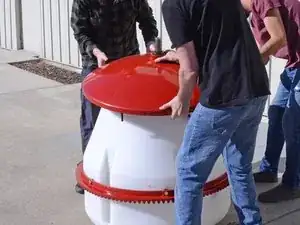

    • Lift the dish straight up and remove it from the yoke.

    • A convenient place to set the dish is on top of the removed tub.

  16. oS2Xjt6iV3KTCk1Q
    oS2Xjt6iV3KTCk1Q
    ShRsBaU34gtEV4N1

    • During reassembly, be sure to align the shaft indent with the lock bolt hole as you set the dish in place. Otherwise, you will not be able to properly lock the shaft and tighten the dish bolt.

  17. EaOYgVXQcTbnHVts
    EaOYgVXQcTbnHVts
    eLYd4yh4rGMj24XN
    BljfXhcqWRPODxow

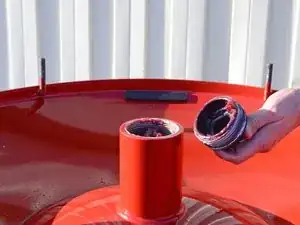

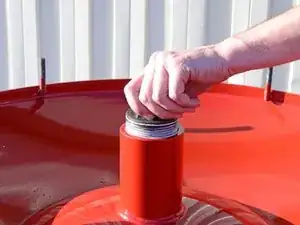

    • Use a pipe wrench or an extra-large crescent wrench to loosen the dish plug.

    • Remove the dish plug.

  18. dhs1oc4OEBkvMEsH
    dhs1oc4OEBkvMEsH
    uTdx5ZT4dCCBFgdE

    • The spindle and bearings are very greasy. Handle these components carefully to avoid getting grease everywhere.

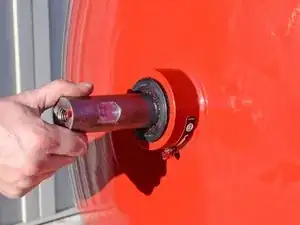

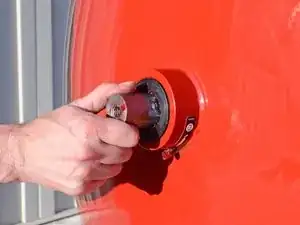

    • Push the spindle from the bottom of the dish.

  19. x16gbJByKfHNYCZx
    x16gbJByKfHNYCZx
    Ty2DWGmWO11WCp2y
    kUZc4uKIPRHxYWpb

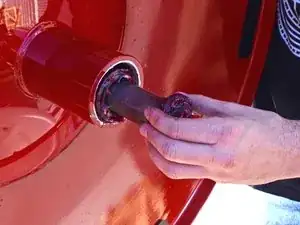

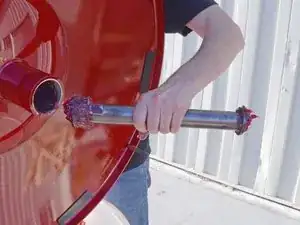

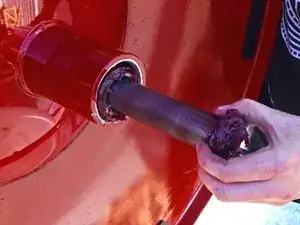

    • Pull the spindle from the top of the dish and remove it.

    • After you reassemble the device, make sure to follow manufacturer instructions on how to properly lubricate the device with a grease gun.

Abschluss

To reassemble your device, follow these instructions in reverse order.

After you reassemble the device, make sure to follow manufacturer instructions on how to properly lubricate the device with a grease gun.
