Toro Log Splitters 22618HD 2019 Control Valve O-Rings Replacement

Geschrieben von: Carsten Frauenheim
  • Kommentare: 0
Toro Log Splitters 22618HD 2019 Control Valve O-Rings Replacement

Schwierigkeitsgrad

Moderate

Schritte

28

Zeitaufwand

45 Minuten - 2 Stunden

Einleitung

This guide shows how to remove and replace the control valve O-rings on the Toro Log Splitter 22618HD 2019 / LS-922.

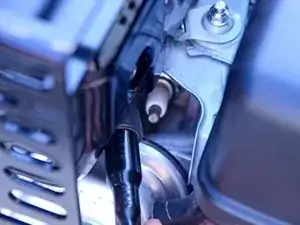

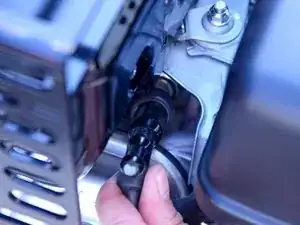

  1. Oayc2Rs5nayc1XDV
    Oayc2Rs5nayc1XDV
    g4nXlg5vKANWyicy

    • Before you begin, ensure that the engine is powered down and cool to the touch.

    • Grab the plastic housing at the end of the spark plug wire and pull firmly to disconnect it.

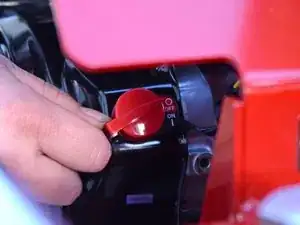

  2. vDPEfXkdhOkpgmJO
    vDPEfXkdhOkpgmJO
    RhSoM6jUyXRv2LPE

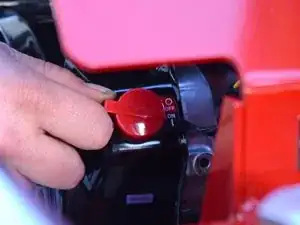

    • Flip the red engine ON/OFF switch to the OFF position.

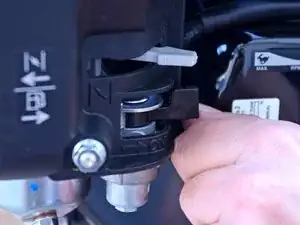

  3. ZUbbVJ15Sl4HybJp
    ZUbbVJ15Sl4HybJp
    wMEtAY1n2cQoqf5Y

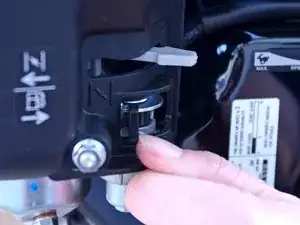

    • Flip the fuel valve lever to the OFF position.

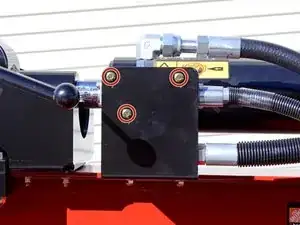

  4. rVs5bIgDQNulO3Z2

    • Use a 3/8 inch socket to remove the three bolts securing the control valve to the control valve bracket.

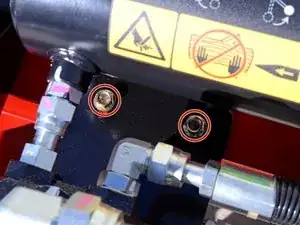

  5. tiuXEgvKwZUuijfs

    • Use a 9/16 inch socket to remove the two bolts securing the control valve bracket to the frame.

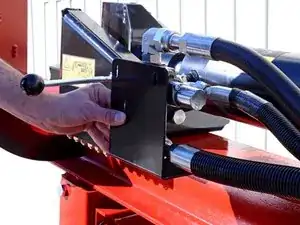

  6. nnLTo32bqhdLmENM
    nnLTo32bqhdLmENM
    evFGBWAnfJMGd362

    • Remove the control valve bracket.

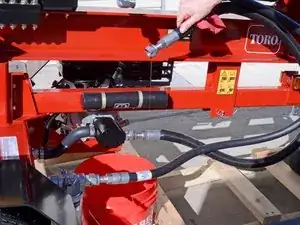

  7. bC5YhmrYTFvgfwOG

    • Residual hydraulic fluid will be trapped in the hoses connected to the control valve, and may drip during the following procedure.

    • Place a bucket underneath the device, below the control valve to catch any hydraulic fluid drips.

    • Have rags handy to stop drips and clean up affected areas.

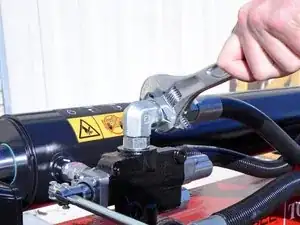

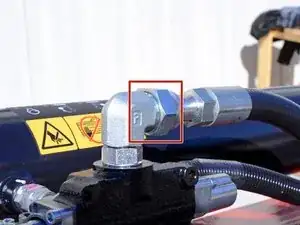

  8. d2EdMDlUeBc4nxYw
    d2EdMDlUeBc4nxYw
    bx4CUFgRAqcDVOZV

    • Use an adjustable wrench to loosen the nut securing the output hose to the L-fitting on top of the control valve.

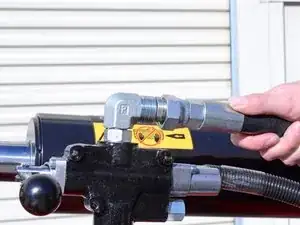

  9. sRPBHrZyY1hAuirh
    sRPBHrZyY1hAuirh
    EHyAXxUZRxtV3ent

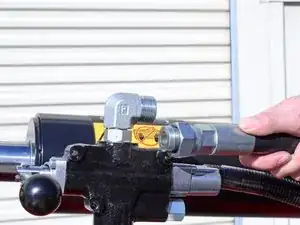

    • Remove the output hose from the top L-fitting.

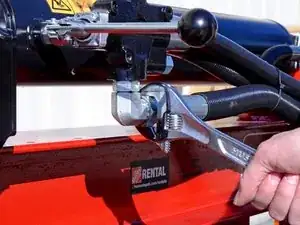

  10. OJ3uFF23MsS1dwKl
    OJ3uFF23MsS1dwKl
    be5FF2VmIt2NPlKK

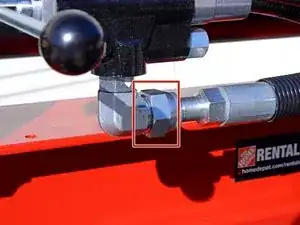

    • Use an adjustable wrench to loosen the nut holding the input hose to the L-fitting on the bottom of the control valve.

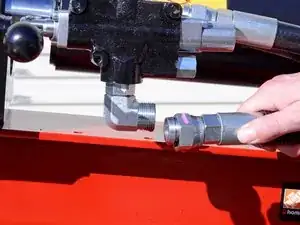

  11. MIDhtJKmAMkEK6vm
    MIDhtJKmAMkEK6vm
    1QGKvBYfjGcfUiAh

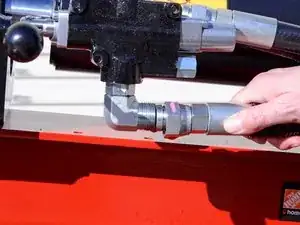

    • Remove the input hose from the bottom L-fitting.

  12. Ar4NaU3IItVCPdcK

    • Use an adjustable wrench to loosen the nut securing the top L-fitting to the control valve.

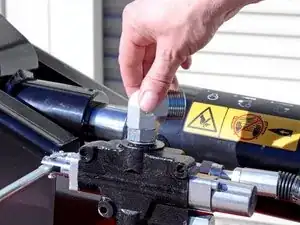

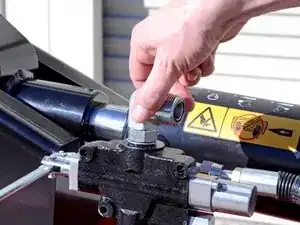

  13. bxV6CIp4XAqqykUB
    bxV6CIp4XAqqykUB
    KM3SU6dO6XxnZuym
    EJAwcm2VfQwqfc5G

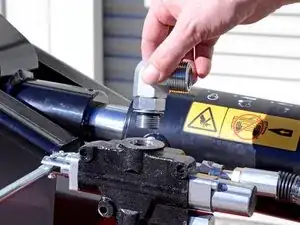

    • Spin the top L-fitting counter-clockwise to remove it.

    • This fitting is part number 340-16.

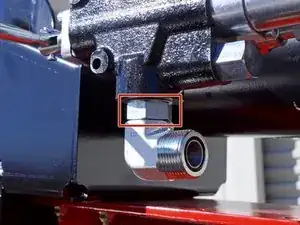

  14. SqkEbDOseWVTgkUB

    • Use an adjustable wrench to loosen the nut securing the bottom L-fitting to the control valve.

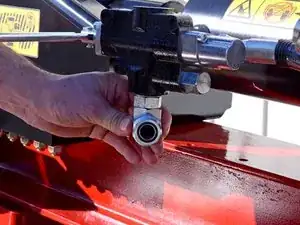

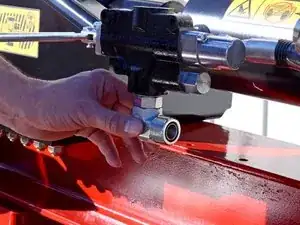

  15. oAWgnSENFSiOkouG
    oAWgnSENFSiOkouG
    Z52PB6n4ldHPf5BJ
    ktxIFMYVClEPB6No

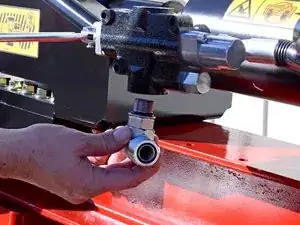

    • Remove the bottom L-fitting.

    • This fitting is part number 340-16.

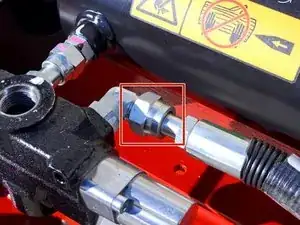

  16. hbbLloPYWRaSKQwN

    • Use an adjustable wrench to loosen the nut securing the piston extension hose to the L-fitting on the rear of the control valve.

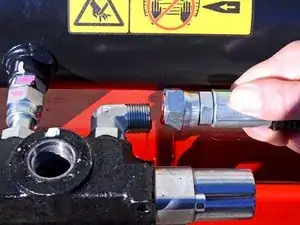

  17. wfPTiQKa11Ror6Vk
    wfPTiQKa11Ror6Vk
    echj6wDT6ZGTf5YS

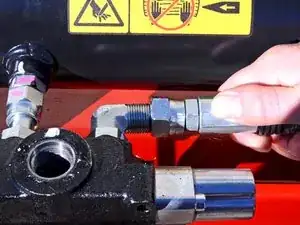

    • Remove the piston extension hose from the rear L-fitting.

  18. dlOmZjL1G4WVAtpv

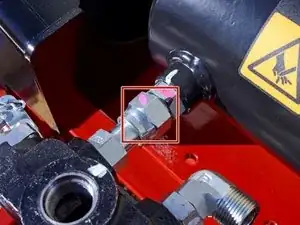

    • Use an adjustable wrench to loosen the nut securing the control valve to the cylinder.

    • This connection is the last part holding the control valve to the device, so keep the control valve supported during removal.

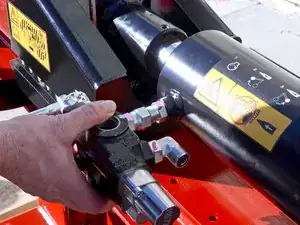

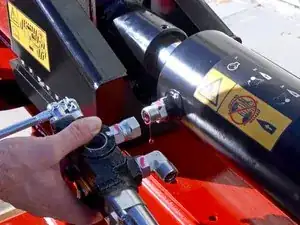

  19. 1eTeXNjWwpqT5DfB
    1eTeXNjWwpqT5DfB
    RHShF2SdmaGMQ2G4

    • Remove the control valve.

  20. wEvTHgcSycSKYfkB

    • Use an adjustable wrench to loosen the nut securing the piston contraction fitting to the control valve.

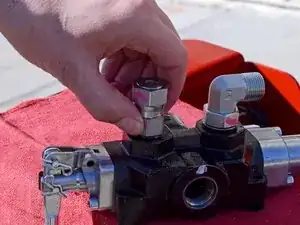

  21. FKnsPqAFEbTe2hOd
    FKnsPqAFEbTe2hOd
    MbTuGyG1a22XHIZ6
    CN4G3fxZqbGDKO22

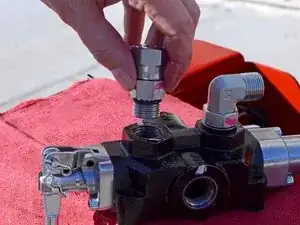

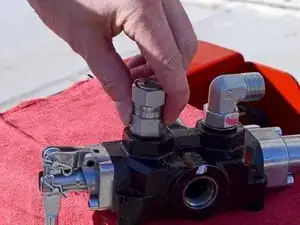

    • Spin the piston contraction fitting counter-clockwise to remove it.

    • This fitting is part number 100-7671.

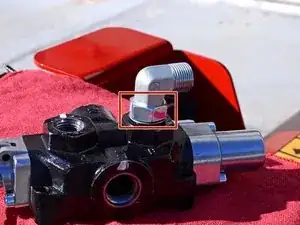

  22. RAuQgyTYbsLkGbEJ

    • Use an adjustable wrench to loosen the nut securing the L-fitting to the rear of the control valve.

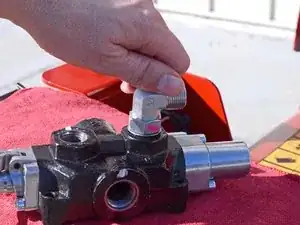

  23. NObgIAhShniIykOL
    NObgIAhShniIykOL
    DoROU4TFgTPqXKBP
    YA3TkxOLsfdvNfHh

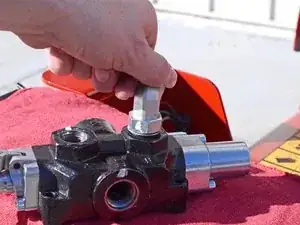

    • Spin the L-fitting counter-clockwise to remove it.

    • This fitting is part number 340-98.

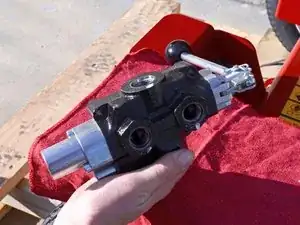

  24. WgQuYFTAsOEhXlBA

    • Only the control valve remains.

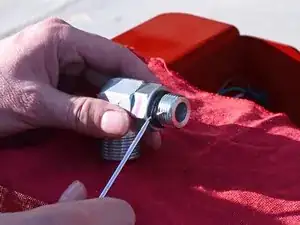

  25. oNkLJIuqnXRtaHBj
    oNkLJIuqnXRtaHBj
    w3hINprmFRxubfQZ
    MGnXWUDgLVAju3Rt

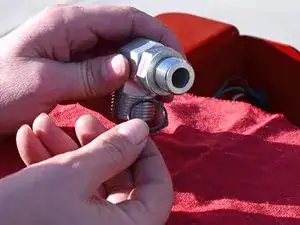

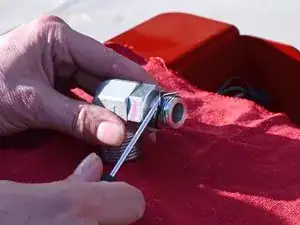

    • Use a pick tool to remove the O-ring from the output hose L-fitting, on the side that connects to the control valve.

    • This O-ring is part number 237-80.

    • The O-ring between the L-fitting and the hose is part number 237-58. Only replace this O-ring if it is visibly damaged.

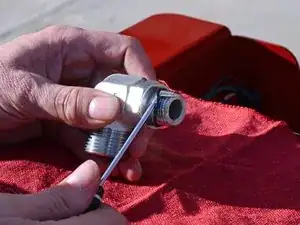

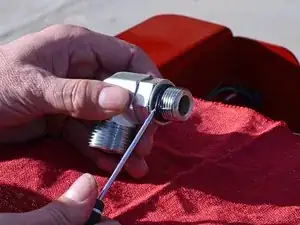

  26. ZFtfmmg2cbAoZWbH
    ZFtfmmg2cbAoZWbH
    rRV41kUFQsuRpSct
    REnhuxpblermLx2w

    • Use a pick tool to remove the O-ring from the input hose L-fitting, on the side that connects to the control valve.

    • This O-ring is part number 237-80.

    • The O-ring between the L-fitting and the hose is part number 237-58. Only replace this O-ring if it is visibly damaged.

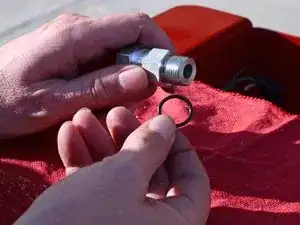

  27. qlVBp25LSxXATNKO
    qlVBp25LSxXATNKO
    sNpTAqJDnR2A3SxD
    kL4sLEVMe3NJLX1k

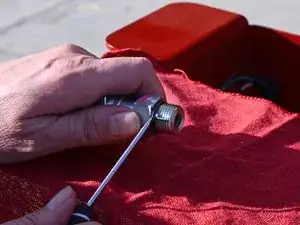

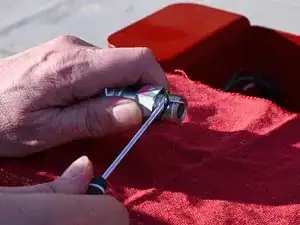

    • Use a pick tool to remove the O-ring from the cylinder contraction fitting, on the side that connects to the control valve.

    • This O-ring is part number 237-79.

    • The O-ring between the L-fitting and the hose is part number 237-30. Only replace this O-ring if it is visibly damaged.

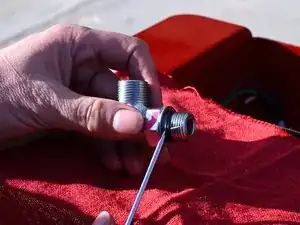

  28. OwQroCD2GLEobAjU
    OwQroCD2GLEobAjU
    QldjLKBOdhn6AXCV
    CiPTUZr6lBURBnZy

    • Use a pick tool to remove the O-ring from the cylinder extension hose L-fitting, on the side that connects to the control valve.

    • This O-ring is part number 237-79.

    • The O-ring between the L-fitting and the hose is part number 237-30. Only replace this O-ring if it is visibly damaged.

Abschluss

To reassemble your device, follow these instructions in reverse order.
