Toro Stump Grinder 22615HD 2017 Cutter Head Replacement

Geschrieben von: Sam Omiotek

Kommentare: 2

Toro Stump Grinder 22615HD 2017 Cutter Head Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

1 - 2 Stunden

Einleitung

Follow this guide to replace the cutter head on a 2017 Toro Stump Grinder model 22615HD.

You will need a second person to assist with this repair.

Werkzeuge

Ersatzteile

Schritt 1

Before you begin, ensure the machine is powered down and cool to the touch.
Turn the ignition switch to the off position.

Schritt 2

Flip the fuel cutoff valve switch into the off position.

Schritt 3

Grab the plastic housing at the end of the spark plug wire.
Pull firmly to disconnect the wire from the spark plug.

Schritt 4

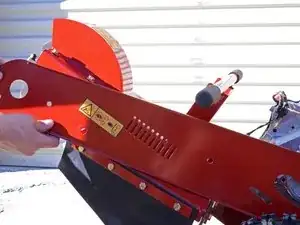

Tilt the machine so that it is resting on the handle with the cutter wheel raised.

Schritt 5

Use a 14 mm socket to remove the fasteners securing the belt guard:
One 14 mm bolt
One 14 mm nut

Schritt 7

Use a 9/16 inch socket to loosen the four nuts securing the bottom of the motor enough to allow the motor to slide freely. Do not remove the nuts.
Use a 1/2 inch wrench in combination with the socket wrench to hold the bolts in place.

Schritt 8

Use a 1/2 inch wrench to loosen the two bolts behind the centrifugal clutch enough to allow the motor to slide freely. Do not remove the bolts.

Schritt 9

Wrap a piece of tape around the upper half of the tensioner bolt to mark the location of the second nut.
Use a 9/16 inch wrench to loosen the nut on the lower half of the tensioner bolt until the motor can slide forward as much as possible.
During reassembly, reference the tape to position the outer nut into the same location as before to ensure proper belt tension.

Schritt 10

Slide the engine towards the cutter blade to loosen the drive belt.

Schritt 11

Lift the drive belt up and away from the machine while rolling it towards the cutter head to gradually roll it off of the pulley.

Schritt 13

Use an impact wrench with a 9/16 inch socket to remove the bolt and washer securing the centrifugal clutch to the spindle.

you left out a step. somehow the crankshaft must be held stationary while screwing out the bolt. crankshaft turns when bolt is turned. therefore no torque to screw out the bolt. how do i hold the shaft stationary while turning the bolt?

MICHAEL T BOLIN -

Good catch, thank you. For this step we used an impact wrench and the bolt was able to turn independently of the crankshaft. If you don't have an impact wrench available, having a second person hold it steady with a bar clamp may also work.

Sam Omiotek -

Schritt 14

Use a jaw puller to extract the centrifugal clutch from the spindle:
Place the center screw so that it is in line with the center of the spindle.
Hook the jaws around the back edge of the clutch assembly.
Tighten the center screw until the centrifugal clutch is removed from the spindle.

Schritt 15

Remove the centrifugal clutch and shaft key from the spindle.

Schritt 16

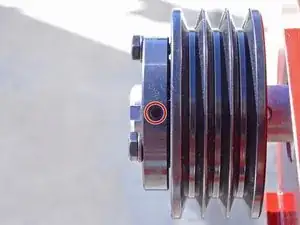

Use a 1/8 inch hex key to remove the pulley set screw.

Schritt 17

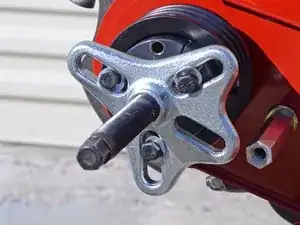

Use a universal puller to remove the pulley from the cutter wheel shaft:
Attach the universal puller to the pulley using the three bolts provided on the pulley.
Use a wrench to torque down the center screw to slowly loosen the pulley.
This may take a lot of force.
If the pulley seems to be stuck after significant pressure is applied with the universal puller, use a blowtorch to apply heat where the pulley contacts the shaft.

Schritt 18

If heat was used to loosen the pulley, use gloves when removing it.

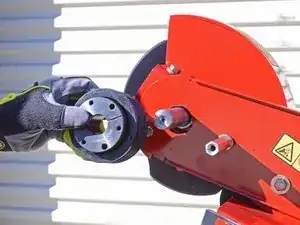

Pull the pulley off of the shaft to remove it.
Remove the shaft key.

Schritt 19

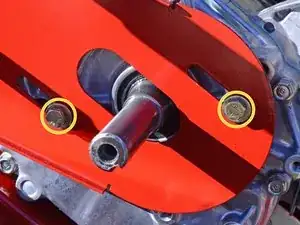

Use a 9/16 inch socket to remove the two bolts and washers securing the guard plate to the motor.
During reassembly, do not tighten these bolts all the way down until the belt is tensioned.

Schritt 20

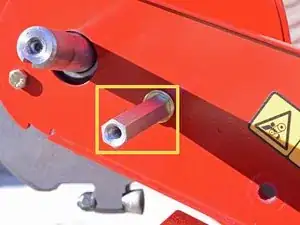

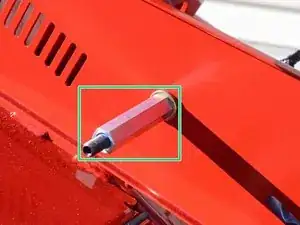

Use a 9/16 inch socket to remove the bolt and washer securing the guard plate to the frame.
Use a 5/8 inch wrench in combination with the 9/16 inch socket to hold the standoff in place.
Remove the bolt, washer, and standoff.

Schritt 21

Use a 9/16 inch socket to remove the bolt and accompanying washer securing the guard plate to the frame.

Schritt 22

Use a 5/8 inch socket to remove the nut securing the guard plate to the frame.

Schritt 23

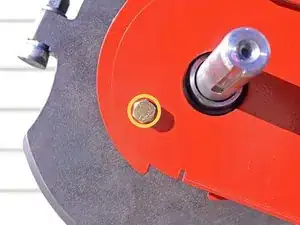

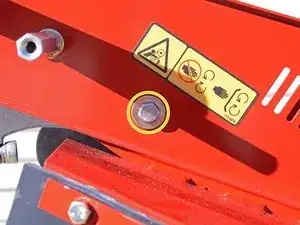

Use a 1/2 inch socket to remove the bolt next to the cutter wheel shaft securing the guard plate to the frame.

Schritt 24

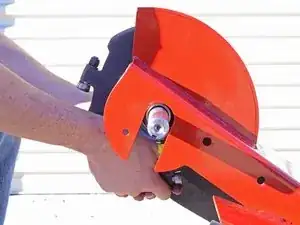

Remove the guard plate from the frame.

Schritt 25

This step requires two people.
The cutter wheel assembly will become loose after these bolts are removed so have a second person hold the cutter wheel to prevent it from falling.

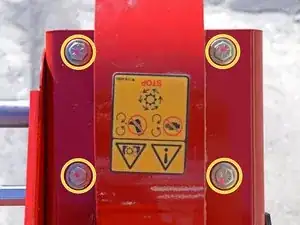

Use a 9/16 inch socket to remove the four bolts from the frame.

Schritt 26

Use gloves when handling the cutter head.
Lower the cutter wheel and bearings out from the frame.
Remove the cutter wheel and bearing assembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
