Toro Stump Grinder SGR-13 22615HD 2017 Belt Guard Replacement

Geschrieben von: Sam Omiotek
  • Kommentare: 0
Toro Stump Grinder SGR-13 22615HD 2017 Belt Guard Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

15 - 30 Minuten

Einleitung

Follow this guide to replace the belt guard on a 2017 Toro Stump Grinder SGR-13 model 22615HD.

  1. yKTFtGTSVQfykedP
    yKTFtGTSVQfykedP
    rQrRWTllVbdORPGN

    • Before you begin, ensure the machine is powered down and cool to the touch.

    • Turn the ignition switch to the off position.

  2. w4qVvtTBVYLNxnoH
    w4qVvtTBVYLNxnoH
    VpyJUWCREOdcS1Wr

    • Flip the fuel cutoff valve switch into the off position.

  3. IvkPJmyDZKumZeDG
    IvkPJmyDZKumZeDG
    3cqjLbt2Xr6TrZ2X

    • Grab the plastic housing at the end of the spark plug wire.

    • Pull firmly to disconnect the wire from the spark plug.

  4. TIvnuMVh3VW4ZLwF

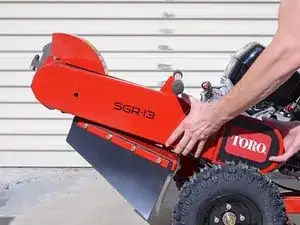

    • Tilt the machine so that it is resting on the handle with the cutter wheel raised.

  5. p2mNVIFneCgZfZRc
    p2mNVIFneCgZfZRc
    NrXJR4QyDeMNmXDJ

    • Use a 14 mm socket to remove the fasteners securing the belt guard:

    • One 14 mm bolt

    • One 14 mm nut

  6. bAbCCZYDsbMONTMI
    bAbCCZYDsbMONTMI
    oGQTpeoXUMXOnuOO
    cinNfILAgouCHL5M

    • Remove the belt guard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
