This guide shows how to remove and replace the brake cable on the Toro Walk Behind Mower 21199HD 2018.

  1. OQZtGFtkEF4vBvq4
    OQZtGFtkEF4vBvq4
    dACKYQwkbMXRhRdD
    • Before you begin, ensure that the mower is powered down and cool to the touch.

    • Grab the plastic housing at the end of the spark plug wire and pull firmly to disconnect it.

  2. 363TiR4yDRMrpZjN
    • Chock the rear wheels to prevent the mower from rolling during service.

    • If the blades are extremely dirty, you can clean them using the washout fitting so the bolts on the underside of the blade guard are accessible.

  3. r4FAZqANvZOFfbU6
    r4FAZqANvZOFfbU6
    mpPFBORU2IhiTIxL
    • Lift up the plastic deflector.

  4. xknjbavIsPvnHD5B
    xknjbavIsPvnHD5B
    UpQo4tj3Xwr5X56o
    HbnY1bo3DsGj4bmX
    • While holding the deflector up and out of the way, lift the grass bag handle away from the mower to detach it.

    • Remove the grass bag.

  5. vCiAIoh2DETN5Y1D
    vCiAIoh2DETN5Y1D
    SshEPve4LUbUaDMR
    JorTdFijpMQ5SJbf

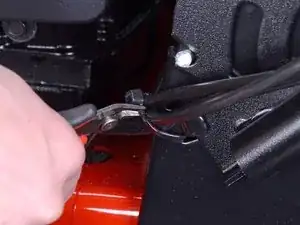

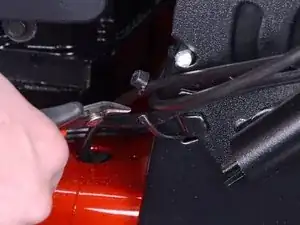

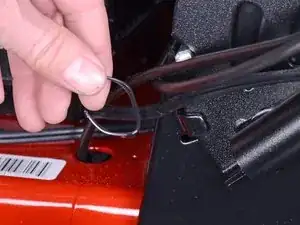

    • Cut and remove the zip tie holding the cables together near the base of the handle.

    • During reassembly, replace this zip tie.

  6. ENCKXTZaoJsrM2LG
    ENCKXTZaoJsrM2LG
    H5yPnfFY13xdBWnK

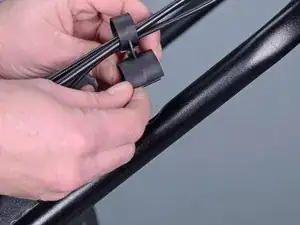

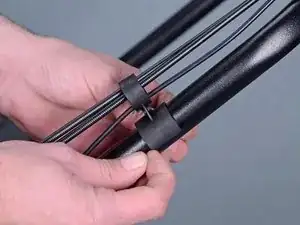

    • Use your fingers and press up from the bottom to remove the plastic cable guide from the handle.

  7. aEvPfLXhrForF5es
    aEvPfLXhrForF5es
    UTYw3sbjkLjnThAD
    Gb6MoDallaxrTfBs

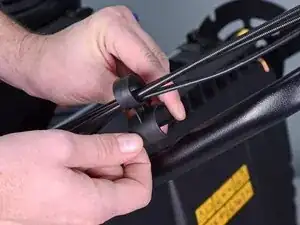

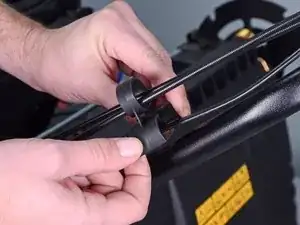

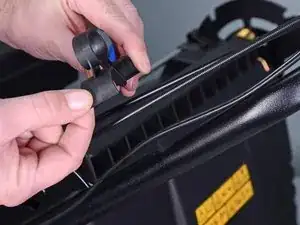

    • Spread the cable guide apart and remove it from the cables.

  8. QTcdHYwTvelUB36U
    QTcdHYwTvelUB36U
    LpKcaATgUn1G1fSp

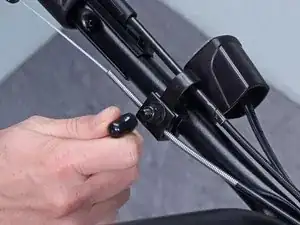

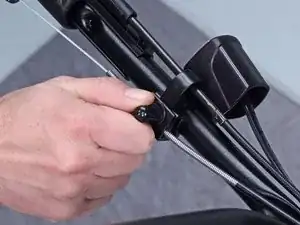

    • Remove the black silicone cap covering the nut on the kill switch and upper cable guide assembly.

  9. Mw2AQVSFTB1utPqX

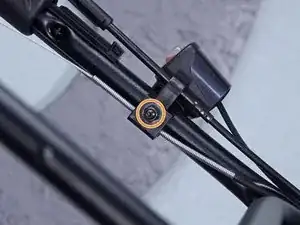

    • Use a 7/16 inch socket or wrench to remove the nut securing the kill switch and upper cable guide assembly.

  10. Wy3pwvoMSpuBe2jq
    Wy3pwvoMSpuBe2jq
    GOgHJWpacdibhnAE
    g4fAMUoIEAGvZoFx

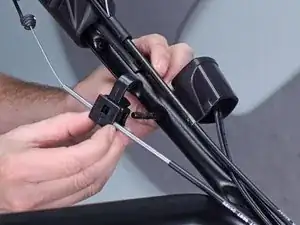

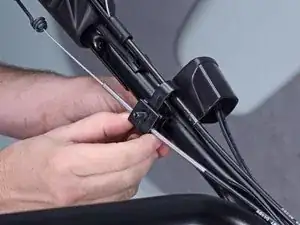

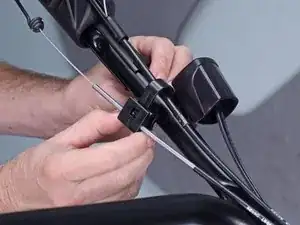

    • Unclip and remove the upper cable guide from the handle.

    • Unroute the cables from the cable guide.

  11. vflREOfo4p3XYlSM
    vflREOfo4p3XYlSM
    mWAqpnG4ePJcB52S
    JEUYytHEuUZJUDei

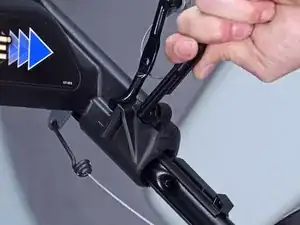

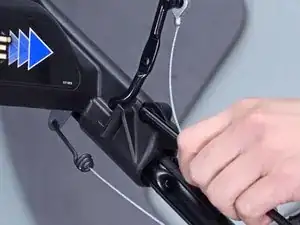

    • Rotate the cable retainer arm 90˚ upwards, perpendicular to the handle, to unlock it.

    • Pull the arm away from the handle to remove it.

  12. 2F561FEpYFLqdBsA
    2F561FEpYFLqdBsA
    OfSvsLHs2d5kPDcJ
    Z3WfrvPgAVo2Bs3Z

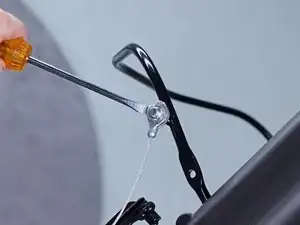

    • Use a flathead screwdriver to pry off the single-use cap locking the brake cable to the brake handle.

    • During reassembly, replace this single-use cap.

  13. FgxbHDUF2gUe5vJH
    FgxbHDUF2gUe5vJH
    aIsUnU4CBffhZuLU

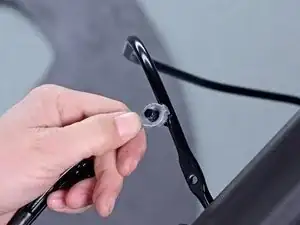

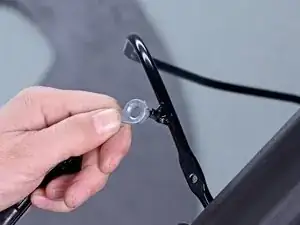

    • Remove the brake cable from the brake handle.

  14. VOUp3ntCfVbuearX

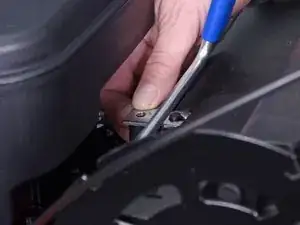

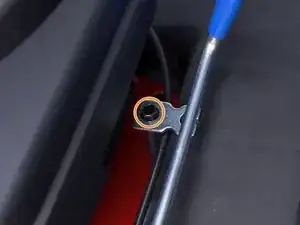

    • Use a 3/8 inch socket to remove the cable guide plate screw.

  15. t6PLEbYXub6ZnlMF
    t6PLEbYXub6ZnlMF
    xHuMvDYpAPQewm3D

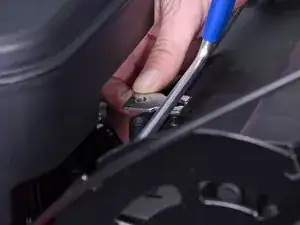

    • Remove the cable guide plate.

  16. BgB2DqPDwK3RiMGY

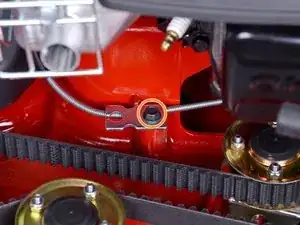

    • Use a 3/8 inch socket to remove the cable guide plate screw.

  17. aoFSRcnknprATiBm
    aoFSRcnknprATiBm
    cUlJNcjolGGI14cK
    cYs6V4svmoLBPFFT

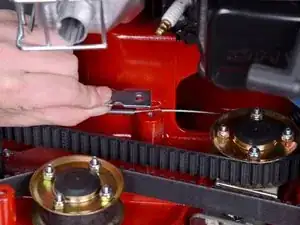

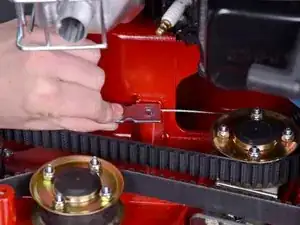

    • Remove the cable guide plate.

    • Lift the cable out of the groove in the frame.

  18. mppTDKE4aT6Rfm4N
    mppTDKE4aT6Rfm4N
    ivkB3kDLCIAjvklo
    l5oDSMLGSlrd2LML

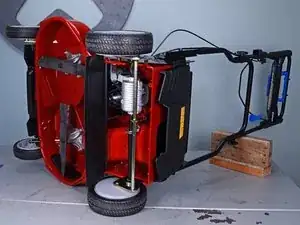

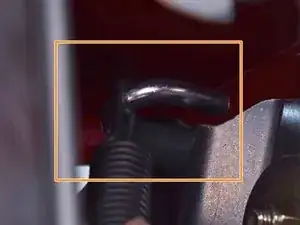

    • Tilt the mower onto its side, propping the handle up with a block of wood.

    • Locate the end of the brake cable underneath the mower, in front of the driveline, and above the blade guard.

    • The end of the brake cable is attached to a spring, and they come out as one unit.

    • The spring is hooked to a shiny U-shaped post.

  19. XHM1QOKXXZqve2cc
    XHM1QOKXXZqve2cc
    uRNexOU2jsFqlOEa
    3MbIIQEqZdYjuqOM

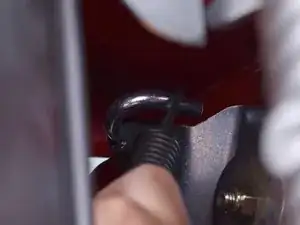

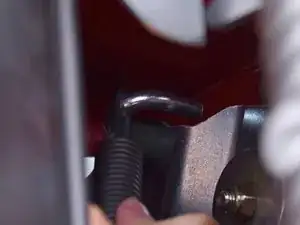

    • Reach into the underside of the mower and grab the spring at the end of the brake cable.

    • Slide the spring towards the open end of the U-shaped post.

    • This can be a difficult area to see and reach. Use a flashlight if need be.

  20. jWsXoJYjlgEEVyPd
    jWsXoJYjlgEEVyPd
    PXwoYu1VhbPFeoiR
    M4QexcSu2KBCRgWd

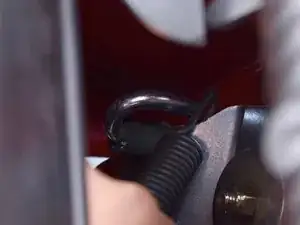

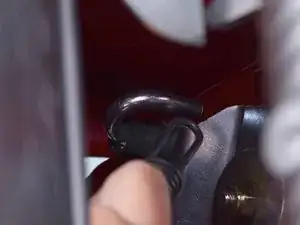

    • Remove the spring from the U-shaped post.

    • Once unhooked, you can flip the mower back onto its wheels.

  21. OOIZ6DCBmAjNbPMF
    OOIZ6DCBmAjNbPMF
    wUKgClywuf2gogp6
    a1lpnKU2BmmSBCPb

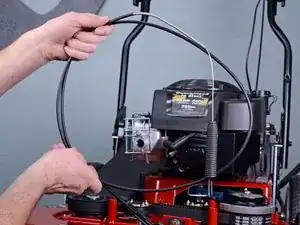

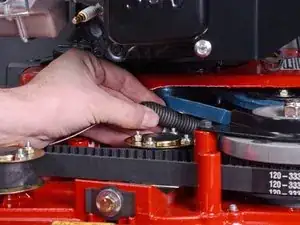

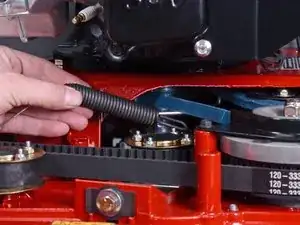

    • Remove the brake cable assembly.

    • During reassembly, ensure the cable has adequate slack and operates as expected before tightening the bolts on the cable guides.

Abschluss

To reassemble your device, follow these instructions in reverse order.
