This guide shows how to remove and replace the traction cable on the Toro Walk Behind Mower 21199HD 2018.

  1. OQZtGFtkEF4vBvq4
    OQZtGFtkEF4vBvq4
    dACKYQwkbMXRhRdD
    • Before you begin, ensure that the mower is powered down and cool to the touch.

    • Grab the plastic housing at the end of the spark plug wire and pull firmly to disconnect it.

  2. 363TiR4yDRMrpZjN
    • Chock the rear wheels to prevent the mower from rolling during service.

    • If the blades are extremely dirty, you can clean them using the washout fitting so the bolts on the underside of the blade guard are accessible.

  3. r4FAZqANvZOFfbU6
    r4FAZqANvZOFfbU6
    mpPFBORU2IhiTIxL
    • Lift up the plastic deflector.

  4. xknjbavIsPvnHD5B
    xknjbavIsPvnHD5B
    UpQo4tj3Xwr5X56o
    HbnY1bo3DsGj4bmX
    • While holding the deflector up and out of the way, lift the grass bag handle away from the mower to detach it.

    • Remove the grass bag.

  5. XoVT5oCpE2JMrrKi
    XoVT5oCpE2JMrrKi
    GFZmhGLfryTAybKF

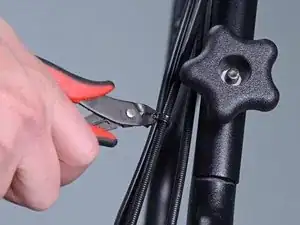

    • Cut and remove the zip tie holding the cables together near the middle of the handle.

    • During reassembly, replace this zip tie.

  6. GDR3VFHXs1yNSosb
    GDR3VFHXs1yNSosb
    rWBA6GPGbPrZiGvR
    kuNqFVTQDBAnufuk

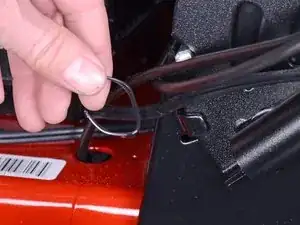

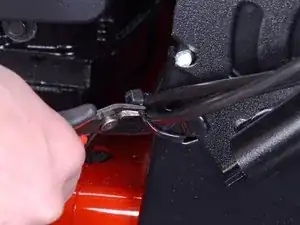

    • Cut and remove the zip tie holding the cables together near the base of the handle.

    • During reassembly, replace this zip tie.

  7. oJIx4ASRKuKMQC2W
    oJIx4ASRKuKMQC2W
    s2kkdZ5MKuQQAHGw
    IXscPkJ2qwaVkhGi

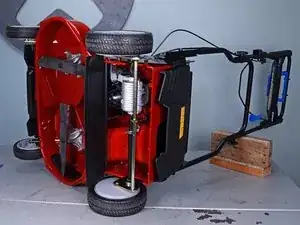

    • Tilt the mower onto its side, propping the handle up with a block of wood.

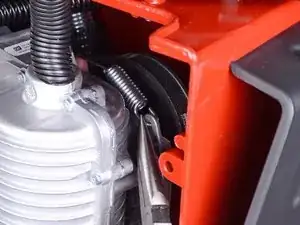

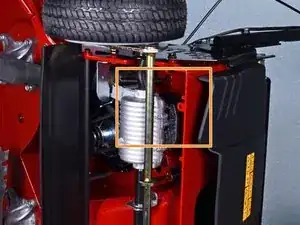

    • Locate the end of the traction cable underneath the mower, attached to the transmission.

    • The end of the traction cable is attached to a silver spring, and they come out as one unit.

  8. IxjQGIWBsYraCOjI
    IxjQGIWBsYraCOjI
    o5pZ6ZKxyKlDTRpi
    WqOOs4wScDeNQlfI

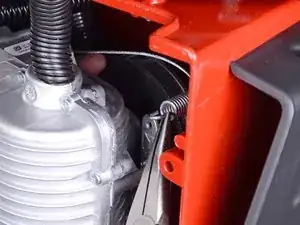

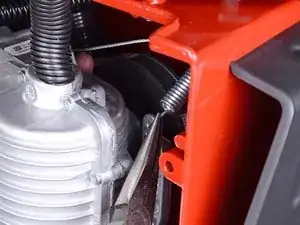

    • Use a pair of needle nose pliers to unhook the traction cable spring from the transmission.

  9. BVNQyPUufgQheKrF
    BVNQyPUufgQheKrF
    MwbjAivAcEHCrDQP

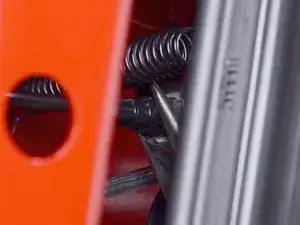

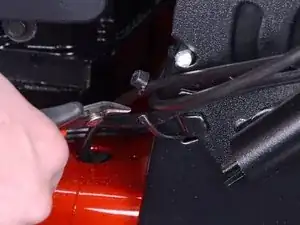

    • Use a pair of needle nose pliers to depress the two wing clips on the plastic lock.

    • This can be a difficult area to see and reach. Use a flashlight if need be.

    • This plastic locking mechanism may break during removal, so be sure to use a new traction cable assembly during reassembly.

    • Once the wing clips are depressed, pull the plastic lock away from the transmission.

  10. rVX1J4ZhRH2NlKhc
    rVX1J4ZhRH2NlKhc
    ujegXQhNLCxWZJwD

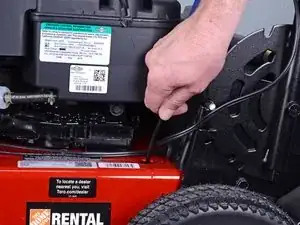

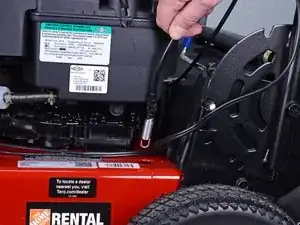

    • Pull the traction cable out through the cutout in the frame.

  11. vQwlJH1GOWKnJtOI
    vQwlJH1GOWKnJtOI
    456NnnAernb5nDCh
    ANFinhhOxoHFpYOH

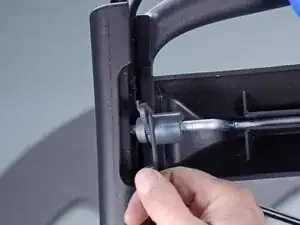

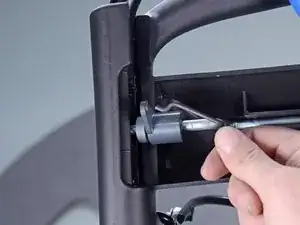

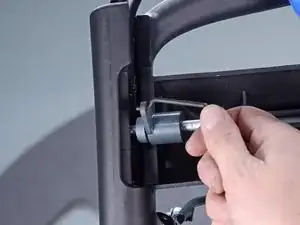

    • Unhook the traction cable handle lock.

  12. rlOlBpHVnNFCRDFB
    rlOlBpHVnNFCRDFB
    TuwXJqDIEuITHwak

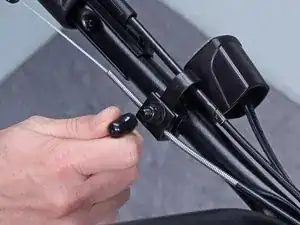

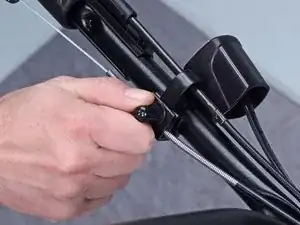

    • Remove the black silicone cap covering the nut on the switch and upper cable guide assembly.

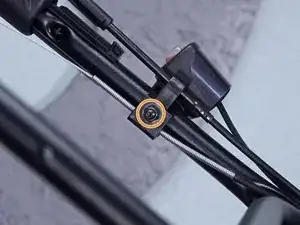

  13. OOyE2XgRHcYPWXIf
    • Use a 7/16 inch socket or wrench to remove the nut securing the kill switch and upper cable guide assembly.

  14. 5LhDUpmVGFDmQi5F
    5LhDUpmVGFDmQi5F
    AMW4yL4u6Yu6pFPy
    WyO3dYPPRDUTj2ld

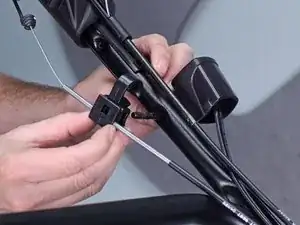

    • Unclip and remove the upper cable guide from the handle.

    • Unroute the cables from the cable guide.

  15. ssLaCuNASLgPT6M1
    ssLaCuNASLgPT6M1
    rtQHr2BsvrsrpMJF
    LEvT5ROPOYtL1bHs

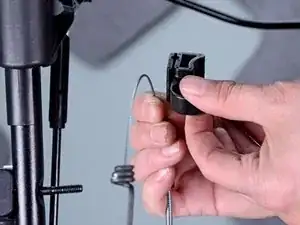

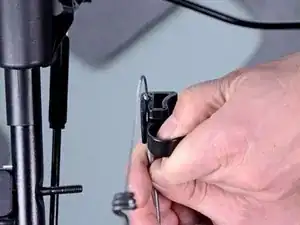

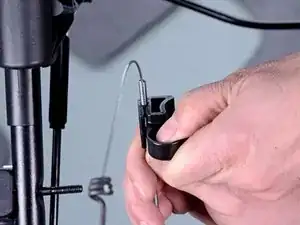

    • Slide the metal cable tube out of the slot on the upper cable guide.

    • Remove the traction cable from the cable guide.

  16. BajyULACxdQsbNmE

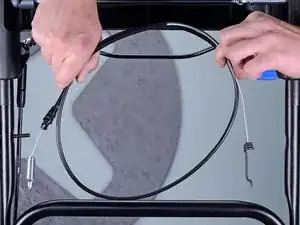

    • Remove the traction cable assembly.

    • During reassembly, ensure the cable has adequate slack and operates as expected before tightening the bolts on the cable guides.

Abschluss

To reassemble your device, follow these instructions in reverse order.
