Torque King Electric RTR RC Monster Truck Antenna Replacement

Geschrieben von: Colton Sholtis
  • Kommentare: 0
Torque King Electric RTR RC Monster Truck Antenna Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

2 Minuten

Einleitung

Antennas in RC cars can be bent/broken during use. Fortunately, replacing the antenna on the Torque King is easy.

  1. HvrWxkeNH4o3qKFQ
    HvrWxkeNH4o3qKFQ
    OELDaXpRivNf1I4T

    • From the top view, remove each of the four pins that hold the casing in place.

  2. Z23WGBUwOWeIQZTD

    • Slowly pull the casing up to remove it.

  3. cwgBcuWqGXLweLNx

    • Loosen the 10mm screw surrounded by the copper using a #2 Phillips head screwdriver.

    • The wire that connects the antenna to the circuitry of the truck might be blocking the screw. Take care when moving the wire out of the way not to pull it from its soldering.

  4. NhPPZRbgdqPiPSSJ

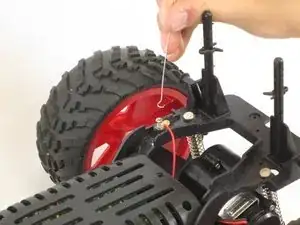

    • Carefully slide the antenna out from under the screw and remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
