Torque King Electric RTR RC Monster Truck Front Wheel Suspension Replacement

Geschrieben von: Maximiliano Cortes
  • Kommentare: 0
Torque King Electric RTR RC Monster Truck Front Wheel Suspension Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide requires removing the casing and front wheels.

  1. HvrWxkeNH4o3qKFQ
    HvrWxkeNH4o3qKFQ
    OELDaXpRivNf1I4T

    • From the top view, remove each of the four pins that hold the casing in place.

  2. Z23WGBUwOWeIQZTD

    • Slowly pull the casing up to remove it.

  3. 6GetCgmjOB2OTOyl

    • Using a Phillips 1 screwdriver, completely unscrew the 8mm screw located in the center of the wheel. Repeat this step for other wheels if needed.

  4. gPeBUBFJIOpLiwad

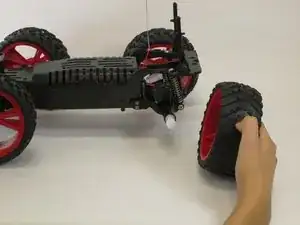

    • Carefully pull the wheel off of its axle. Repeat for other wheels as necessary.

  5. GbB1lgoetDVhYXcs
    GbB1lgoetDVhYXcs
    uGD2MgCZb4plntIF

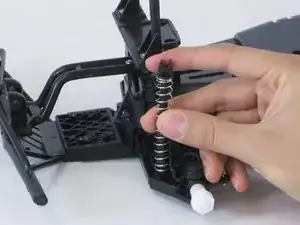

    • Pull the top half of the suspension to unclip it.

  6. rFgIIgX1iGC23XnE

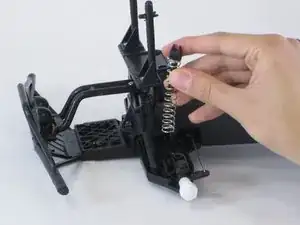

    • Remove the top clip along with the spring.

  7. Bk1jm4N5MPOpXFXP
    Bk1jm4N5MPOpXFXP
    vFU3XGQIlXHt4AFG

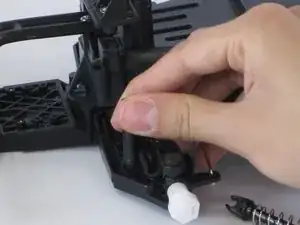

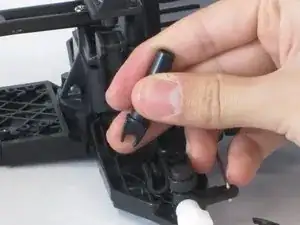

    • Pull up the bottom half of the suspension to unclip it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
