Torque King Electric RTR RC Monster Truck Rear Wheel Suspension Replacement

Geschrieben von: Colton Sholtis
  • Kommentare: 0
Torque King Electric RTR RC Monster Truck Rear Wheel Suspension Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 20 Minuten

Einleitung

The suspension of the truck is responsible for its steering stability and ability to drive over rough terrain. Through regular use, the springs and rods of the suspension may become damaged; this is a guide to replace those parts.

  1. HvrWxkeNH4o3qKFQ
    HvrWxkeNH4o3qKFQ
    OELDaXpRivNf1I4T

    • From the top view, remove each of the four pins that hold the casing in place.

  2. Z23WGBUwOWeIQZTD

    • Slowly pull the casing up to remove it.

  3. 6GetCgmjOB2OTOyl

    • Using a Phillips 1 screwdriver, completely unscrew the 8mm screw located in the center of the wheel. Repeat this step for other wheels if needed.

  4. gPeBUBFJIOpLiwad

    • Carefully pull the wheel off of its axle. Repeat for other wheels as necessary.

  5. H32IsRSRlcIVNDF1

    • After removing the rear wheels, remove the 8mm screw under each spring with a Phillips 1 screwdriver.

  6. mRy6RtMCcvSSSaJw

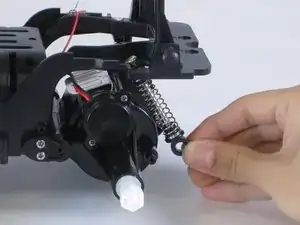

    • Slide off the bottom part of the rod connected to the chassis.

  7. FPUaVChEEGHysSTH
    FPUaVChEEGHysSTH
    ZeMs5NEXL3ZO4kQw
    XRyGnRiNg4MGupRV

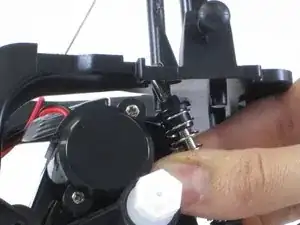

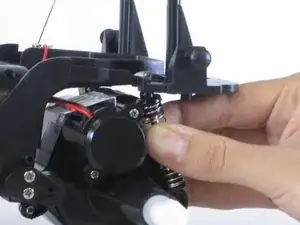

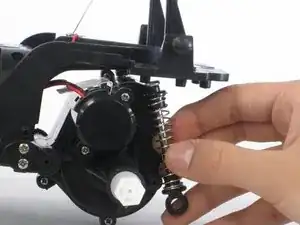

    • Pull the black washer inside the spring downwards and towards the truck's rear simultaneously in order to remove the suspension.

Abschluss

To reassemble your device, follow these instructions in reverse order.
