Toshiba CB35-3350 Chromebook 2 Fan Replacement

Geschrieben von: Kojo Appiagyei
  • Kommentare: 0
Toshiba CB35-3350 Chromebook 2 Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

9 Minuten

Einleitung

To complete this guide you will need to work with a steady, gentle hand. Just so you do not mess it up.

  1. 4IJrlGHXHjHGCVfG
    4IJrlGHXHjHGCVfG
    yUUcstRjUJZrSdMe

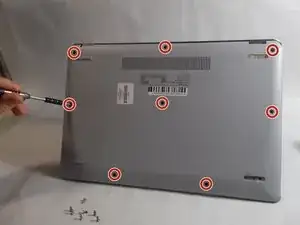

    • Remove the Phillips #0 screws from the back of the laptop.

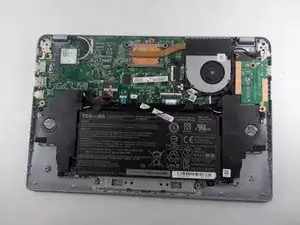

    • Use your hands and an iFixit opening tool to remove the back of the laptop.

  2. u5TjvoIJTbGQGGLd

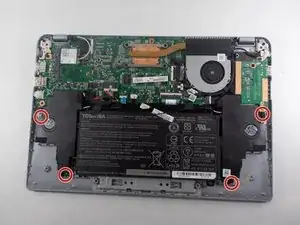

    • Remove the four Phillips #0 screws from the speakers.

    • Move the speakers out of the way.

  3. oLKvpbbaPJGnKAOR

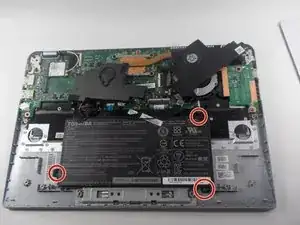

    • Remove the three Phillips #0 screws from the battery.

  4. EfQjeevgMQUUI2T3
    EfQjeevgMQUUI2T3
    XAGYS24CI6biHWG5
    RTYSkBEYMnd6IyOQ

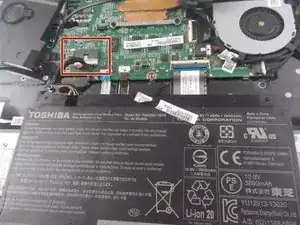

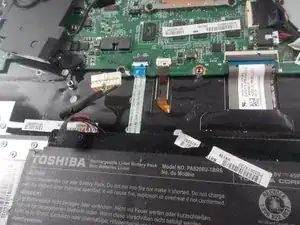

    • Unplug the wires connecting the battery to the motherboard.

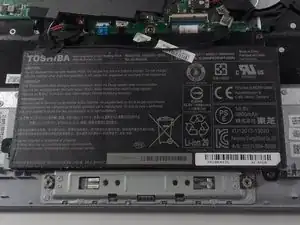

    • Remove the battery from the laptop.

  5. pT2taUrM4qSkgvEn

    • Unscrew the four captive Phillips #0 screws from the heat sink.

  6. uQtKgXKZfeUkooZQ

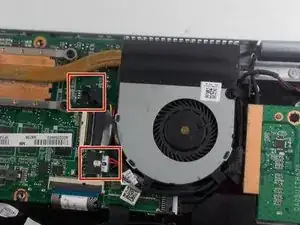

    • Detach the wires connecting the fan to the motherboard.

  7. FDerbtNESAZtxS4N
    FDerbtNESAZtxS4N
    ZYMTLLYZZyQOmB23

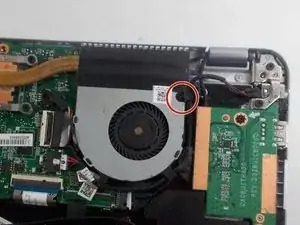

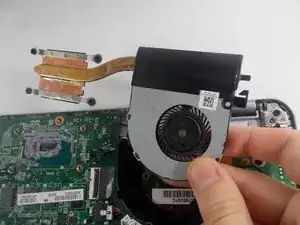

    • Detach the wire from the fan.

    • Remove the fan from the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
