Toshiba CB35-C3300 Chromebook 2 Speakers

Geschrieben von: Mehdi Mohammadi
  • Kommentare: 2
Toshiba CB35-C3300 Chromebook 2 Speakers

Schwierigkeitsgrad

Very easy

Schritte

11

Zeitaufwand

5 Minuten

Einleitung

The only hard thing about the guide is making sure the wire does not get in the way!

  1. tjAoNDvXqnRc52AI
    tjAoNDvXqnRc52AI
    P3hyiwkXjdqoBIYY

    • Remove the 2 rubber foot pads from the bottom (opposite the hinge) with the small Plastic Opening tool.

  2. MIWQRqhRwDyQWtxo
    MIWQRqhRwDyQWtxo
    WOfnMkYrT1nKAdCR

    • Remove the 10 7.1 mm screws using Phillips #1 screwdriver.

  3. TBsqDRe3AXDsiPTY

    • Loosen the back cover by using a plastic opening tool all the way around the device.

    • There are areas all along the sides of the device that help aid in this.

    • Be careful when prying, and go slow. The silver plastic frame around the dull gray plastic bottom is fragile and easily dented from prying pressure.

    I have the UK model and I found Fascinating Captain’s method for removing the back cover to be simplicity itself:

    https://www.youtube.com/watch?v=JcZ711cx...

    Rob Butler -

  4. Nv6SXDZGMOZMeOmT
    Nv6SXDZGMOZMeOmT
    NTMmKP62dOsTMqda

    • Remove the back cover by gently lifting up on one side of the device.

    • The easiest side to lift up on is the one with the removed rubber foot pads.

  5. c1aNTog1TTPqaHV6
    c1aNTog1TTPqaHV6
    NE1EA5VnTbURHjiI

    • Remove the tape holding the speaker wire to the battery on both sides using a small opening tool.

  6. EJ3nLpTxP1EduDYg
    EJ3nLpTxP1EduDYg
    yerArPBI3oW1WLMc

    • Remove the 4 Phillips 3.2 mm screws holding the battery in place, with the Phillips #1 screwdriver.

  7. BXsIMCap1ISPqDFL
    BXsIMCap1ISPqDFL
    tWOGfYSNurgWSZvk
    EEjPg2emg6uLOTeR

    • To disconnect the wire from the mother board, gently press down with the flat end of Spudger and pull on the wire.

    • Gently shaking the wire from left to right helps with the wire removal

  8. WpiUofQlG53BBxMb
    WpiUofQlG53BBxMb
    5rJX6JnJaYYeRMPE

    • Remove the battery by gently pulling on the bottom corners.

    • Be careful to move the battery's wire under the speaker's wire.

    Thank you AGAIN for your perfect HOW-TO Guide on Toshiba Battery Replacement!! Can you help me find a Replacement Keyboard for an ASUS Model W203A? I cannot even find a SINGLE ARTICLE on the Internet on this Model (no reviews, Asus, nothing). Thanks . Guy Rogers Attorney Jackson MS 601.941.6689

    Guy Rogers -

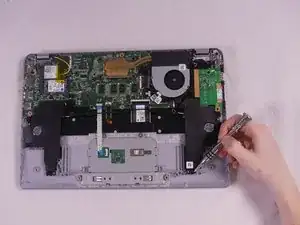

  9. TmTocAL4Mrw5qDyG
    TmTocAL4Mrw5qDyG
    iJdQX1I1oaGCWXn4

    • Remove the 4 Phillip 6.3 mm screws from both the right and left speakers using Phllips 1 screwdriver.

  10. JxSCWul4Vejo3asW

    • Gently remove wire from the motherboard by pulling it out of the connector socket.

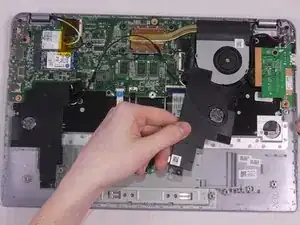

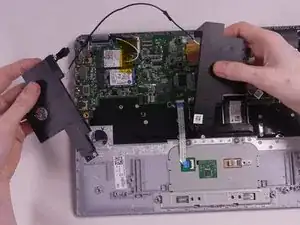

  11. pKVRHbBWNEghZJEG
    pKVRHbBWNEghZJEG
    OHiag616vLOs6iUO
    O3RGc1HCdJhNJ2ME

    • Remove the right and left speaker by lifting them up.

Abschluss

To reassemble your device, follow these instructions in reverse order.
