With this guide, you will be able to safely remove your old trackpad from your Toshiba CB35-C3300 Chromebook and replace it with your new trackpad.
The trackpad is a built-in mouse for your Chromebook that allows you to click on applications and browse in the operating system.
Your trackpad lifetime is based on how often it’s used. You may experience issues with your trackpad if you press too hard on it or none of your tapping is registering on your display.
It is important that you be careful when removing your trackpad since you also need to remove your battery to access the trackpad.
Ersatzteile
-
-
Remove the 2 rubber foot pads from the bottom (opposite the hinge) with the small Plastic Opening tool.
-
-
-
Remove the tape holding the speaker wire to the battery on both sides using a small opening tool.
-
-
-
Remove the 4 Phillips 3.2 mm screws holding the battery in place, with the Phillips #1 screwdriver.
-
-
-
To disconnect the wire from the mother board, gently press down with the flat end of Spudger and pull on the wire.
-
-
-

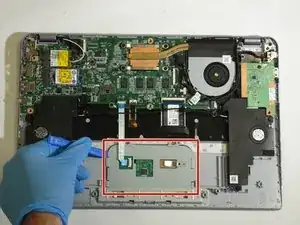

Using a Phillips #1 screwdriver, remove the two screws located at the top of the trackpad.
-
-
-

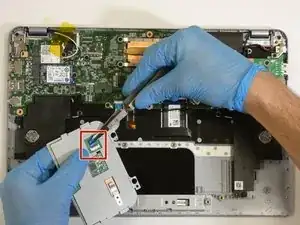

Flip up the black tab on the trackpad to disconnect the ribbon cable connecting the trackpad to the motherboard and gently remove the ribbon cable.
-

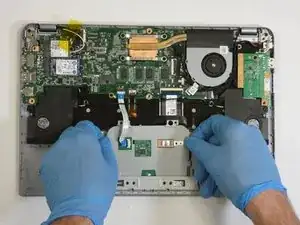

Remove the trackpad from the device.
-
To reassemble your device, follow these instructions in reverse order.
