Toshiba CB35-C3300 Heat Sink Replacement

Geschrieben von: Gabriel Bryan
  • Kommentare: 0
Toshiba CB35-C3300 Heat Sink Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

This guide will show you how to correctly replace your heat sink. This is a fairly straight forward replacement and does not require advanced knowledge or training.

  1. cMLjxkCuenhIHGc1

    • Remove the back cover of the Chromebook and locate the Heat sink and connected fan.

  2. Aldl1UGmWncVdS5X

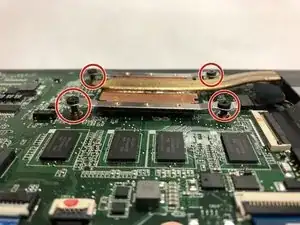

    • Unscrew the 4 screws connecting the Heat Sink to the motherboard.

  3. OBXiKngRxGsu2GpB
    OBXiKngRxGsu2GpB
    5oAOCJmLIK2Z6Wvx

    • Unplug the three primary wires attached to the fan from the motherboard.

  4. lRXI2sGrF2SJWqmK

    • Ensure that all cables are detached.

  5. mbdn2XnHDPUgxl5G

    • Carefully remove the Heat sink and fan and set aside.

Abschluss

To reassemble your device, follow these instructions in reverse order.
