Toshiba Chromebook 2 Speakers Replacement

Geschrieben von: Alec Marnoch
  • Kommentare: 1
Toshiba Chromebook 2 Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

6 Minuten

Einleitung

Over time, speaker quality can degrade for a variety of reasons. Replacing the speakers will fix most issues involving sound and sound quality.

  1. 1eNNBPpjC4IFscgr

    • Remove all external devices from the Toshiba Chromebook 2.

  2. WqtPbDhdoWIjTQIY

    • Close the Toshiba Chromebook 2 and turn it over so that the bottom of the laptop is facing upwards toward you with the lettering on the bottom facing right side up.

  3. f1aW2WIdXaDdhEbE
    f1aW2WIdXaDdhEbE
    DHwdAYGdcNmhOULx

    • Remove the 8 visible Phillips 8.25 mm screws using the Phillips #0 screwdriver.

  4. phLmABBDI1Zd1YQN
    phLmABBDI1Zd1YQN
    VAgABb6LQwlGEFBH

    • Remove 2 hidden Phillips 8.25 mm screws located underneath the rubber grips at the back (opposite the hinges) with the Phillips #0 screwdriver.

    • The rubber grips are glued in place, so you'll need to peel them up with a spudger or other pry tool.

  5. JXsUSyXPFDOng3MG

    • Remove the back panel by pulling up on 2 adjacent corners.

  6. OUkQKFnWv3JcGKqI
    OUkQKFnWv3JcGKqI

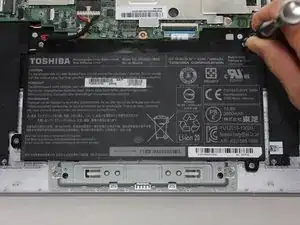

    CTAXX4rVhHTtaFvN

    • Remove the 4 Phillips 2 mm screws holding the battery in place with the Phillips #0 screwdriver.

  7. kSaswvnfXcwfOk43

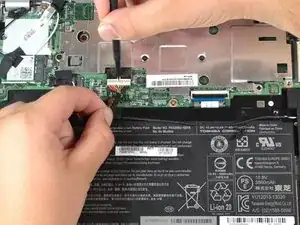

    kSaswvnfXcwfOk43

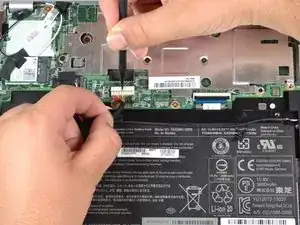

    CibUKkmTy25MygbQ

    • Press down on the white clip and softly pull the wires out of the port to disconnect battery from the motherboard.

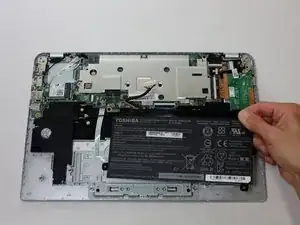

  8. jhsTl3EScGFZOJyG

    • Remove the battery by gently pulling up on the bottom corners.

    Thank you for the step by step guide!

    yoena lopez -

  9. j23NYXVDCeGpN5np

    • Remove the 2 3.3 mm screws holding the left and right speakers with the Phillips #0 screwdriver.

  10. CebUKNHqRlKNOJPt

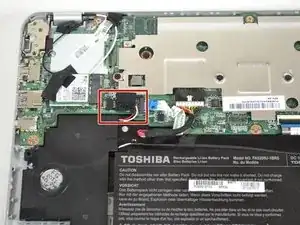

    CebUKNHqRlKNOJPt
    oOTJYaI2PoXOnp42

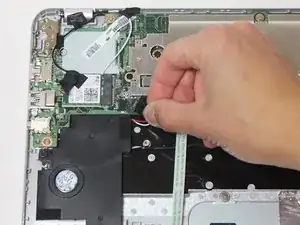

    T2ClJABxAI4DAeH6

    • Pull the red and white wires out of the socket above the left speaker to disconnect the speakers from the motherboard.

  11. okWUnkmYY2xWstnZ

    • Remove the speakers by lifting upwards.

    • Wiring connecting the left and right speakers may be taped to the top of the battery. Simply remove the tape to remove the speakers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
