Einleitung

A touchpad is extremely important in the use of laptops. The touchpad can often cause the cursor to not move in the right direction, or not at all. When these are continual problems, the best solution is to replace the faulty touchpad with a new one.

  1. 1eNNBPpjC4IFscgr

    • Remove all external devices from the Toshiba Chromebook 2.

  2. WqtPbDhdoWIjTQIY

    • Close the Toshiba Chromebook 2 and turn it over so that the bottom of the laptop is facing upwards toward you with the lettering on the bottom facing right side up.

  3. f1aW2WIdXaDdhEbE
    f1aW2WIdXaDdhEbE
    DHwdAYGdcNmhOULx

    • Remove the 8 visible Phillips 8.25 mm screws using the Phillips #0 screwdriver.

  4. phLmABBDI1Zd1YQN
    phLmABBDI1Zd1YQN
    VAgABb6LQwlGEFBH

    • Remove 2 hidden Phillips 8.25 mm screws located underneath the rubber grips at the back (opposite the hinges) with the Phillips #0 screwdriver.

    • The rubber grips are glued in place, so you'll need to peel them up with a spudger or other pry tool.

  5. JXsUSyXPFDOng3MG

    • Remove the back panel by pulling up on 2 adjacent corners.

  6. OUkQKFnWv3JcGKqI
    OUkQKFnWv3JcGKqI
    CTAXX4rVhHTtaFvN

    • Remove the 4 Phillips 2 mm screws holding the battery in place with the Phillips #0 screwdriver.

  7. kSaswvnfXcwfOk43
    kSaswvnfXcwfOk43
    CibUKkmTy25MygbQ

    • Press down on the white clip and softly pull the wires out of the port to disconnect battery from the motherboard.

  8. jhsTl3EScGFZOJyG

    • Remove the battery by gently pulling up on the bottom corners.

    Thank you for the step by step guide!

    yoena lopez -

  9. j23NYXVDCeGpN5np

    • Remove the 2 3.3 mm screws holding the left and right speakers with the Phillips #0 screwdriver.

  10. CebUKNHqRlKNOJPt
    CebUKNHqRlKNOJPt
    oOTJYaI2PoXOnp42
    T2ClJABxAI4DAeH6

    • Pull the red and white wires out of the socket above the left speaker to disconnect the speakers from the motherboard.

  11. okWUnkmYY2xWstnZ

    • Remove the speakers by lifting upwards.

    • Wiring connecting the left and right speakers may be taped to the top of the battery. Simply remove the tape to remove the speakers.

  12. cdtEFdLNKDTlCeGu
    cdtEFdLNKDTlCeGu
    kIpyLFXJWIUUVNYQ

    • Detach the ribbon cable connected to the motherboard by gently pulling near the top fold.

  13. V4CwwFZlkfS64LsB

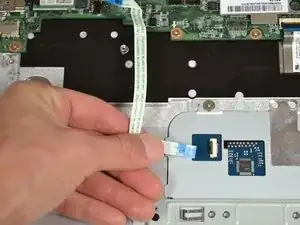

    • Detach the ribbon cable connected to the touch pad by gently pulling near the bottom fold.

  14. Mv11SugOvMcGYNFi
    Mv11SugOvMcGYNFi
    CIJbQI4TLARLpy43

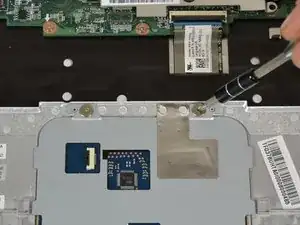

    • Remove all four 3.70mm screws around the edges of the touchpad using a Phillips #0 screwdriver.

  15. dOVcSMOHypfnrDrK
    dOVcSMOHypfnrDrK
    xT12VH56ABKHeBkZ

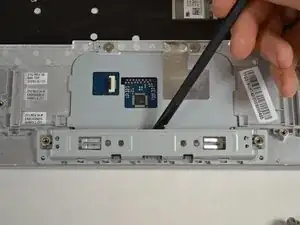

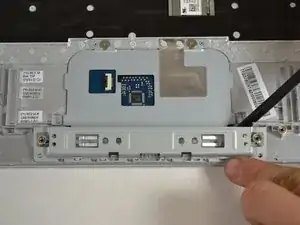

    • Use the spudger to push up on the metal cover below the touch pad until it reaches 90 degrees then pull up to detach.

  16. NgyZPVp2LAplZE6B
    NgyZPVp2LAplZE6B
    hTqURIvwcN12sKvN
    QSBIbLtrTFR3YPGH

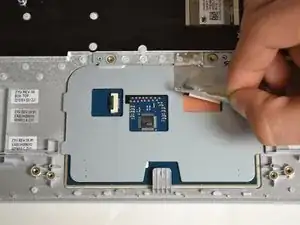

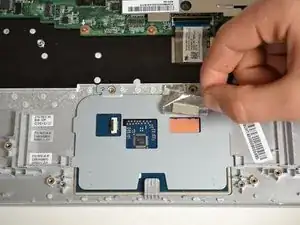

    • Peel back the aluminum foil piece on the top right corner of the touchpad.

    • Move slowly and carefully, you will need the same aluminum foil piece to connect to your new touchpad.

  17. W5xZbKXNmBJE3pMx
    W5xZbKXNmBJE3pMx
    HYAEwhMiWVFLhMV5

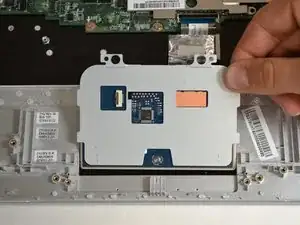

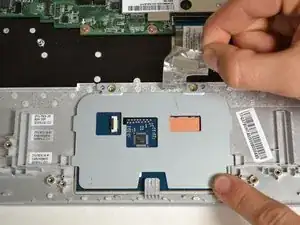

    • Push down on the bottom right corner and slowly lift up in the upper right hand corner until the touch pad comes out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
