In this guide we plan to remove the internal speakers from the Toshiba ChromeBook and replace them with new ones.
Werkzeuge
-
-

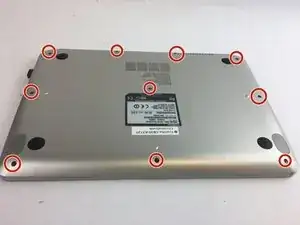

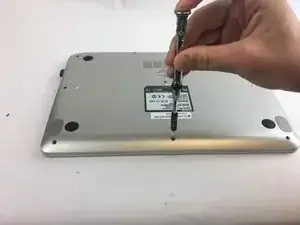

Using a Y1 screw driver head remove all ten .9mm screws from the back cover
-
Set the screws aside in preparation for reassembly
-
-
-

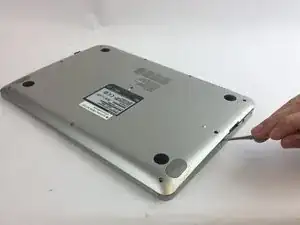

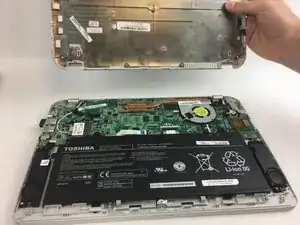

Remove the back cover by placing a prying tool in the SD slot and popping the clips out of place.
-
-
-

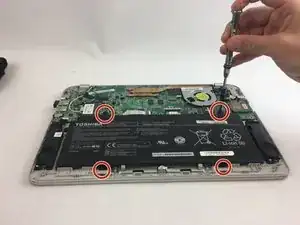

Unscrew the battery by using a J1 screw driver head, and place the four .7mm screws off to the side
-

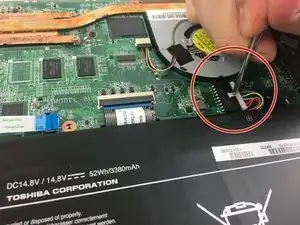

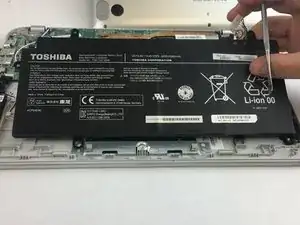

Using a pry tool, pop the battery connector out of place and gently lift the battery upward.
-
-
-

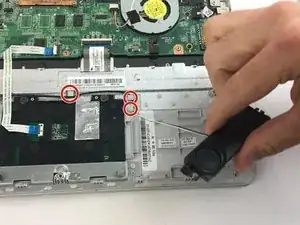

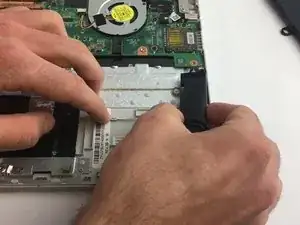

Remove the right side speaker by popping it out of place with your finger
-

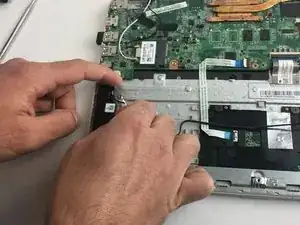

Follow the speaker wire along the clips underneath the battery until you reach the left hand speaker
-
-
-

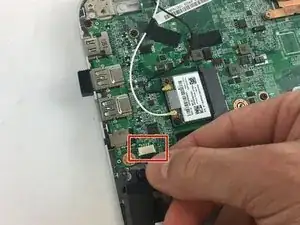

Unplug the connector wiring the speaker to the mother board.
-
Pop the speaker out of the computer, similar to the method used in the previous step.
-
To reassemble your device, follow these instructions in reverse order.
