Toshiba Dynabook AX 53D Memory Replacement

Geschrieben von: Christopher
  • Kommentare: 0
Toshiba Dynabook AX 53D Memory Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 Minuten

Einleitung

This guide will show users how to replace the memory (RAM) from the Toshiba Dynabook.

  1. VqCSqOPDiEvIaQLs

    • Push apart the two spring loaded plastic tabs labeled #1 and #2.

    • Make sure to unplug any external power sources before working on the computer.

  2. LitTWkbDAMoJkDwU

    • The battery is now easily removed by pulling up from the notched tab on the inside edge.

  3. REEuloCMCHoaXX4M

    • Remove the 4.5 mm screw labeled 4 and lift up panel from the vented 2" x "4 memory cover in the middle of the computer.

  4. iYcq3eMyTYNIdGGM

    • Gently pull apart the two metal support clips on either side of the chip to release from the socket. It will spring upwards when it is properly released.

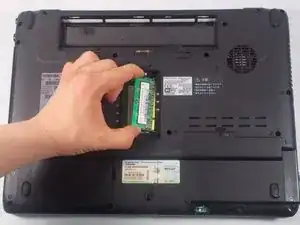

  5. Mx2JyUepQfgDhM3h

    • Gently pull the chip out of the clips.

    • Touching the contacts or the chips on the board could destroy the components.

Abschluss

To reassemble your device, follow these instructions in reverse order.
