Toshiba Dynabook T552-58G Screen Replacement

Geschrieben von: Courtney Orange
  • Kommentare: 0
Toshiba Dynabook T552-58G Screen Replacement

Schwierigkeitsgrad

Difficult

Schritte

8

Zeitaufwand

25 Minuten

Einleitung

Fix your computer’s screen with ease by following this guide.

If your screen is busted, malfunctioning, or just needs to be replaced, this guide will assist you through the process. For best results, all steps should be followed.

  1. e11NyATiFr4xn2qG

    • Peel screw covers off with pointed tweezers. There are four of them.

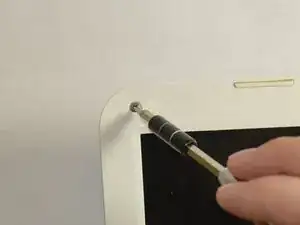

  2. TuxdcVNb2yA3AlDe

    • Using a PH 00 screwdriver, unscrew the four screws in each corner of the screen cover. Each screw is 3.3 mm long.

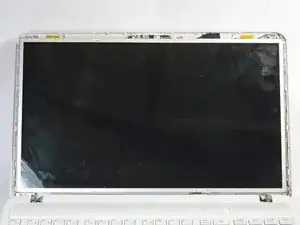

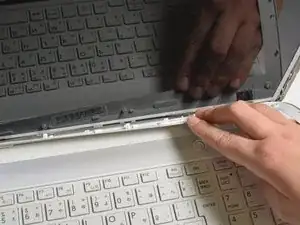

  3. MQWNqJPHmvGpDx2w
    MQWNqJPHmvGpDx2w
    FWxFniUnSlEamkKk
    Pikyh3MKIhxCema1

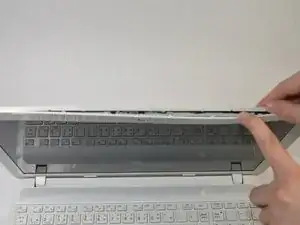

    • Using your fingers, pull the screen covering off.

    • The cover should pop off.

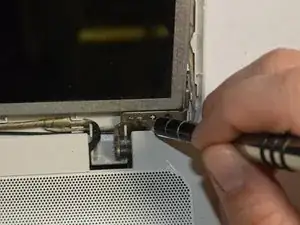

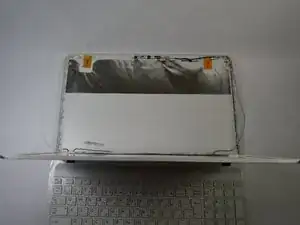

  4. IIY3sAS2MAUOnnee
    IIY3sAS2MAUOnnee
    MmMtkK6iQtGJLTvy

    • Using a PH 0 screwdriver, unscrew the screws connecting the front cover to the screen. There are two and each screw is 3.4 mm long.

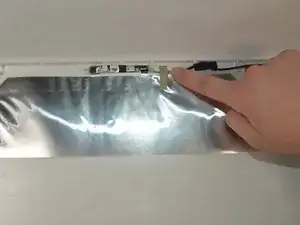

  5. xX5FanyosZajxbUN
    xX5FanyosZajxbUN
    JyKcKkyQVxMTZWCC
    Kys1BjZEGF2xZmUB

    • Using your fingers, pull the wires from the backing of the front cover.

    • Disconnect the wire from the front cover.

  6. DoQ2XoWTPYUlg5Ut
    DoQ2XoWTPYUlg5Ut
    WnOdFXfEQhYKikX6
    E2uTDSaIQktVrE1q

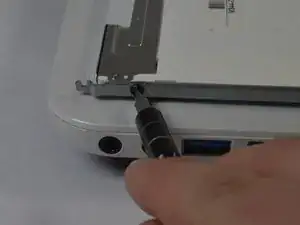

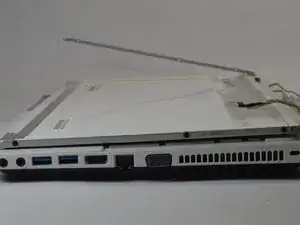

    • Using a PH 0 screwdriver, remove the screws from each side of the screen. There are a total of six screws. Each screw is 3.2 mm long.

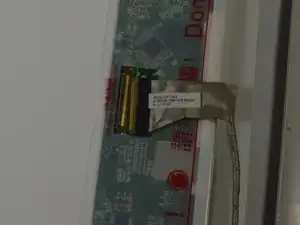

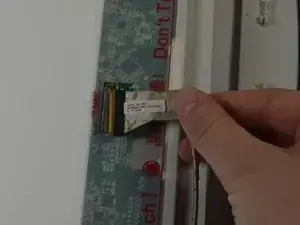

  7. KPfDmD5eTFWflDmR
    KPfDmD5eTFWflDmR
    ZBYIhXOeYIykSglY
    6WtfajQQirjkARo4

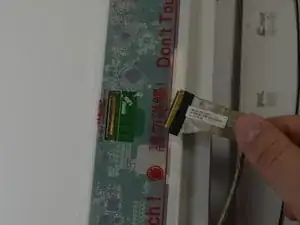

    • Remove wire from the back of the screen by just lifting and pulling it.

  8. eBkRbLhWCU4RhkLx

    • Gently remove screen from the rest of the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
