Einleitung

  1. QMajvErsMGaVHSmh
    QMajvErsMGaVHSmh
    q1eXiIu13IOfGMvq
    w1oye6KaAsifU1cr
    • Start by holding your Toshiba tablet faced up.

    • Flip the tablet from left to right so that you are able to see the back of the tablet.

    • Hold tablet and be ready to continue onto the next steps.

  2. FsYMEIJL5F5wtwV5
    FsYMEIJL5F5wtwV5
    dGKMueeYVIgW2DkF
    NFaM4eqqiPMVGxSG
    • Insert a plastic opening tool in the back case of the tablet to free the clips.

    • Begin to pull the tool up slightly and work your way around the tablet to free all the clips.

    • Using a metal opening tool as shown in the photos has the potential to damage your device.

  3. TRBVcXdB2jmT2GPB
    TRBVcXdB2jmT2GPB
    1ldMpqCXioT5TRmV
    cSoiXACCIg64MpZt
    • Hold back lid with your right hand and keep lifting to remove the back lid.

    • Pull the back lid from right to left and top to bottom.

    • Once you disconnect the back lid, place lid aside.

  4. w1RZeh1SCVe3qLrT
    w1RZeh1SCVe3qLrT
    nHfSRXg5QcVn1cxD
    • Use plastic spudger to remove the attached battery wires by pushing the plastic wire holder from right to left on top and bottom part of plastic holder.

  5. IANgJDtKQDMQJORD
    IANgJDtKQDMQJORD
    DZqtJ4XD1jrsAYDk
    OghES5wFtDgWdbXd
    • Start by using your left hand on the top left corner on the battery.

    • Then, begin to lift and work your way around the battery.

  6. bZvN33w21JMLSdUq
    bZvN33w21JMLSdUq
    mVbOMxHADDDQByMg
    • Remove the battery from the compartment.

  7. D1Jbf2yZI3pf12hR
    D1Jbf2yZI3pf12hR
    ZQ2LU6d36GYfhsig
    • Once you take off the back case and battery, set tablet screen faced down.

    • Unscrew the 11 screws shown in the markups with a Phillips #00 screwdriver.

    • BE AWARE: Screws are extremely small.

  8. Uf11oA2tKRFCgOUY
    Uf11oA2tKRFCgOUY
    Z1sjgtrhUycGYU5V
    KkrVNmp2JPw65U5i
    • Before taking off motherboard, grab tweezers to peel off tape on the two ribbons marked on the picture.

    • Once tape is removed, use the same tweezers to carefully pull the ribbons downwards to disconnect from motherboard.

  9. 5ZrRfLIpuNA3x4pZ
    • On the top left corner, pull the black compartment carefully upwards.

    • This component still has wires attached, so be careful not to sever the wires as you remove it.

  10. OZlZbyJKmM6XKg53
    OZlZbyJKmM6XKg53
    lsoHSxcFFCDiDIhH
    • Once black compartment is off, you will be prepared to disconnect motherboard.

    • Carefully lift motherboard upwards with the black compartment.

  11. YB1c2OtkVeSIPrUd
    YB1c2OtkVeSIPrUd
    QNwVvVlBMs36f2qc
    PHI2LTZBHTND5iuU

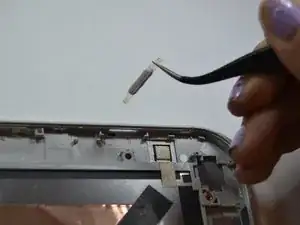

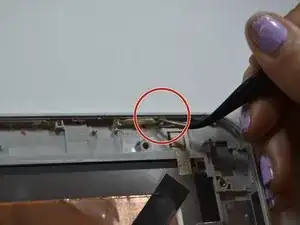

    • Once motherboard is disconnected, grab tweezers.

    • Start by locating the power button. Once it is located, with the tweezers, on the right top corner, start by lifting the plastic band upwards that is connected to the power button.

    • Grab right end of the plastic band and lift upwards to disconnect from compartment

Abschluss

To reassemble your device, follow these instructions in reverse order.
