Einleitung

The following guide gives instructions on how to remove the motherboard. This procedure is done in order to replace multiple components. Be sure to avoid damaging any components or connectors removed from the motherboard. It is advised to back up data to an external device before attempting any component replacement.

  1. S1GQcwhJHWql1ILL
    S1GQcwhJHWql1ILL
    aJLt2PWMPnHkl1Xk
    • To replace the battery, the rear cover must first be removed.

    • Using the flat end of the spudger, gently pry open the back case from the rest of the device.

    • It may be easier to start along one of the long edges and carefully work your way toward the corner, then along the short edge.

  2. HIQYHifSqVMSoxCc
    • Remove the rear cover and set it aside.

  3. 1mK1tvZdytkgeDLC
    • Carefully remove the electrical tape that holds the battery in place.

  4. cxwQ2eVdPCOcESNO
    cxwQ2eVdPCOcESNO
    6n6TgV3CXoNeDcfr
    • Using needle-nose tweezers, gently push the large white wire connector (connected to the black, red and blue wires) out of its housing.

  5. YMnYA6lcHQcXFCN4
    • Gently lift the battery out of the device.

    • Be careful not to pull on the connecting wires.

  6. poyvgLeBvOnnkdkK
    poyvgLeBvOnnkdkK
    LNjKRcw4RIIdMLQG
    3BXMtrIWUPIBUGZL
    • The audio module must be removed to replace the front-facing camera.

    • Using needle-nose tweezers, carefully push the small white wire connector (red/black wires) out of its housing.

    • Gently remove red/black wire strands from the clips holding them to the back of the screen.

  7. 5oovAIpcI5g3IUGa
    5oovAIpcI5g3IUGa
    AHGwYJshL23BofWD
    • Gently pry audio module from the back of the screen using tweezers and spudger. Be careful not to pull on the wires.

    • Adhesive on the bottom of the speaker module may make it difficult to remove.

    • Set the audio module and attached wire aside.

  8. ouO3txOnbxb5lyDe
    ouO3txOnbxb5lyDe
    MMGovlReSiilNqqE
    4iBsp4NRugkNaTKj
    • Using needle-nose tweezers, carefully flip up the dark gray cover on the right of the device holding the small orange ribbon in place. (It is approximately 1/4" wide.)

    • With the tweezers, carefully pull the small ribbon out of its housing. It will stay attached to the device at the other end.

  9. WPaFp2j5oKEFLCN1
    WPaFp2j5oKEFLCN1
    eZHkCvjdlVwg14BJ
    • A wide orange/gold ribbon connects the screen to the motherboard. (Ribbon is approximately 1" wide.)

    • Carefully pull the black tape off the ribbon housing and set it aside. You will need to replace the tape when reassembling the device.

  10. IGjVCJeRKEQObHke
    IGjVCJeRKEQObHke
    51xgUFEjAsdkOdY2
    LIke3qJq5IKPYYFi
    • Damaging this ribbon will permanently disable your device!

    • Using needle-nose tweezers, carefully flip up the dark gray cover.

    • With the tweezers, carefully pull the wide ribbon from its housing. It will stay attached to the device at the other end.

  11. AEvYfPoKLYgcmjZW
    AEvYfPoKLYgcmjZW
    y4HOvMQXPLVHOpfL
    wgO4hKnp4kpmFL5d
    • Using a Phillips 000 screwdriver, remove the screws holding components together.

    • Remove four 4.2 mm Phillips screws.

    • Remove one 3mm Phillips screw.

  12. AJbqpd4jbh1sU5dq
    AJbqpd4jbh1sU5dq
    PJMQZSBkxEGt2bnH
    • Holding the motherboard carefully by the edges, gently lift it up off the screen and carefully set it aside.

    • The motherboard may resist as you try to lift it --this is normal.

  13. sOiZIOxpPp5A1BjM
    sOiZIOxpPp5A1BjM
    yfUbe6FKJTwfrvn2
    • The front-facing camera may dislodge freely when removing the motherboard.

    • If camera has not already "popped" off the motherboard, use needle-nose tweezers to gently grasp the camera and remove from motherboard.

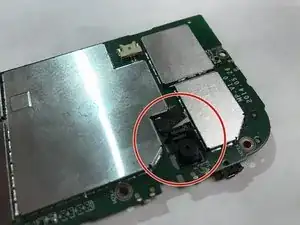

  14. dFOSmMt3wPGVDTZP
    dFOSmMt3wPGVDTZP
    PKxIshkDYyopUMyu
    • Remove yellow tape.

    • Use tweezers to pull on the camera housing until it is free of the motherboard.

  15. BCcluVrSJXTAM2f2
    • The motherboard completely detached from the device.

    • The headphone jack and power plug are soldered to the motherboard. Therefore the motherboard must be replaced to replace these components.

Abschluss

To reassemble your device, follow these instructions in reverse order.
