Toshiba Encore WT8-A Tablet Camera Replacement

Geschrieben von: Melanie Mestre
  • Kommentare: 0
Toshiba Encore WT8-A Tablet Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

Keine Schätzung

Einleitung

  1. vJIAQQqeEtoFddlI

    • Remove the 4 – 4.5 mm screws from the motherboard assembly.

  2. ZrLWGTAjIGqoJQmK

    • Remove the 2 – 3.5 mm screws from the motherboard assembly.

  3. MEmymdGtNxbnGj26

    • The motherboard should come free at this point.

  4. KRuAYjRhOPBYIm5i

    • Use small plastic opening tool for the following steps.

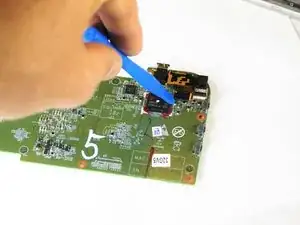

  5. ZEjsdwrWYkFyOJZQ
    ZEjsdwrWYkFyOJZQ

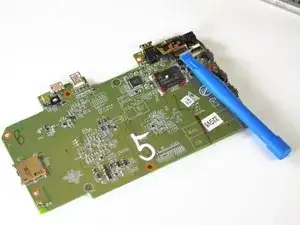

    xmkEMcfixwZFiulP

    • Use small plastic opening tool to pry rear facing camera flat top connector from motherboard.

  6. ATBKI1VEXVNoRAqv

    • The rear facing camera should come free at this point.

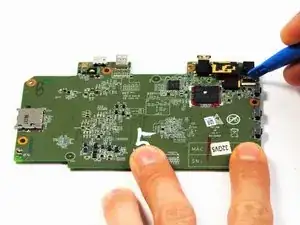

  7. sJxtW52CsupHADnB

    • Use small plastic opening tool to pry front facing camera flat top connector from the motherboard

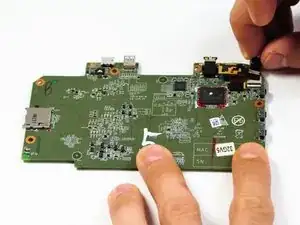

  8. CLEqWk1nPjApNy1c
    CLEqWk1nPjApNy1c

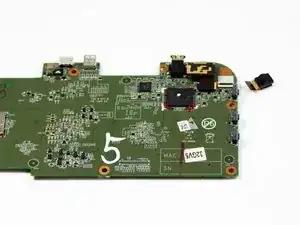

    WvdMEbfBPENmvxSh

    • The front facing camera should come free at this point.

Abschluss

To reassemble your device, follow these instructions in reverse order.
