Toshiba Excite 10 AT300 Back Panel Replacement

Geschrieben von: Andrew Gillis
  • Kommentare: 0
Toshiba Excite 10 AT300 Back Panel Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

Keine Schätzung

Einleitung

This guide serves as a prerequisite step for all of the other repair guides. Removing the back panel is necessary to access any of the hardware within the tablet.

  1. AbvtZ5L2YyMmhQFp

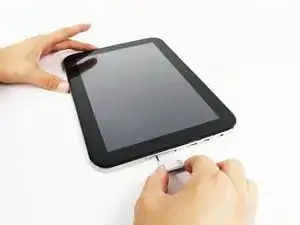

    • Remove the SD card from the SD card slot.

  2. 6DQpVGT4i6rHiFqO
    6DQpVGT4i6rHiFqO
    DRKCCpHRLCoHUF4F
    4Qae6G5SvDHqrX1o

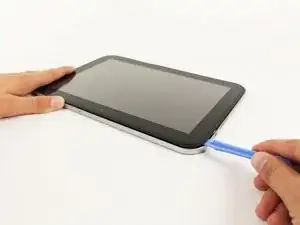

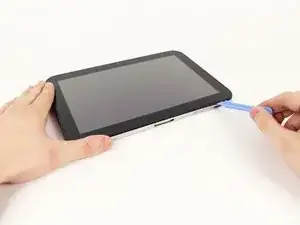

    • Use the opening tool to separate the front and rear panels by slipping the tool underneath the screen edge and sliding it around the entire device.

    • Make sure you unclip all of the clips on the back panel, or pulling it off will be difficult and may damage the tablet.

  3. glSD1URqoyCrqfqZ
    glSD1URqoyCrqfqZ
    ccyFHQxCoNccEs1K
    B3hvZLQkhomFH1pX

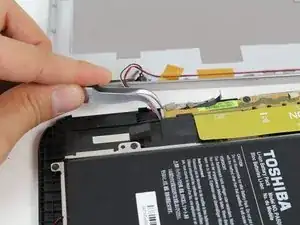

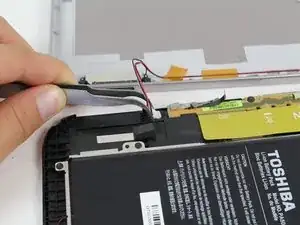

    • Remove the speaker cable from its socket by gripping both sides of the white connector piece with tweezers and pulling straight out.

    • Be careful not to rip the wires out of the white connector piece.

Abschluss

To reassemble your device, follow these instructions in reverse order.
