Toshiba Excite 7 Screen Replacement

Geschrieben von: Sean Ulch

Kommentare: 4

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

15 - 25 Minuten

Einleitung

Werkzeuge

Schritt 1

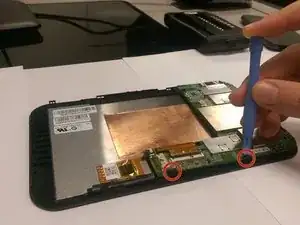

Remove the back cover.
Work your fingernail or flat object under the cover’s seal. Start at the top right corner just above the front facing camera this is the device “Weak Spot”.
After you pry open the first clip slide the flat object along the perimeter of the cover until the cover is removable. You should hear the clips pop open.

Remove the back cover. Work your fingernail or flat object under the cover’s seal (Start at the top right corner just above the front facing camera, this is the device “Weak Spot”). After you pry open the first clip slide flat object along the perimeter of the cover until cover is removable (you should hear the clips pop open).

Martin Bucheli - 19/02/15

Schritt 2

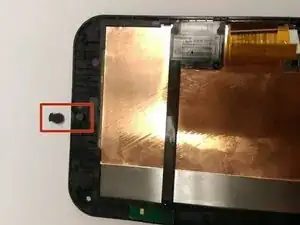

Remove any black tape from the device.
Keep the tape, you will need to put it back on when you are done.

Remove any black tape from the device. Keep the tape. You will need to put it back on when you are done.

Martin Bucheli - 19/02/15

Schritt 3

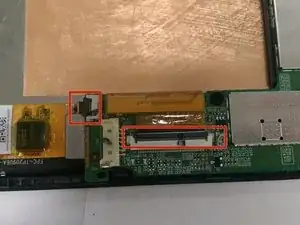

Unplug the wires from the battery.
The battery is the black rectangle in the middle of the device. The device has two wiring harnesses attached to it, one just above the battery and one just to the right.

Unplug the wires from the battery; the battery is the black rectangle in the middle of the device and it has two wiring harnesses attached to it, one just above the battery and one just to the right.

Martin Bucheli - 19/02/15

Schritt 4

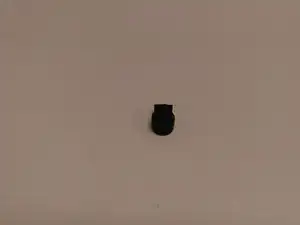

Unscrew the battery from the device.
The device has 5 screws to remove, keep the screws.

My Excite 7 does not have screws as shown. There is a strip of tape on the top on each edge. Nothing else holds the battery.

P/N of the unit is PDA0MU-001005. The parts layout is significantly different from what you show.

Installed new battery; device is still dead. Looks like off to the recycling bin.

indexer43 - 18/04/18

Schritt 5

The battery has one clip you will need to remove. The clip is located at the bottom right corner of the battery just above the right speaker. The speakers and wires are not secured to the battery, they may fall off.
Push the clip back then lift the battery up.

Schritt 6

The screen is connected to the circuit board by 2 “Data Cables” (orange ribbons). Data cables include 3 working components, data cables, the white harness plug, and the black lever.
Gently flip the black lever up and unplug data cables.
