Einleitung

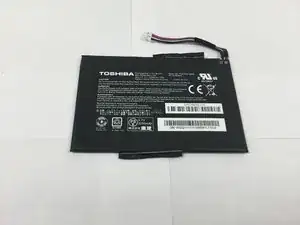

This guide will show you how to replace the battery on a Toshiba excite 7c. The battery may need to be replaced because it is not holding a charge or the tablet will not turn on. Once the tablet case is open, battery replacement is rather easy and requires only a set of tweezers.
Be careful not to pull the wires of the connector while performing this repair.
Werkzeuge
-
-

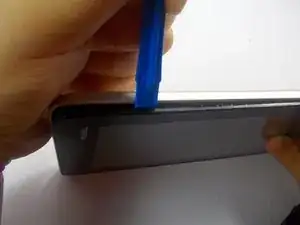

To open your device use the plastic opener. Locate the seam on your device and gently separate applying pressure down all four sides.
-
The back casing will start to peel away from the screen.
-
Carefully lift and remove the back panel with tablet lying face down on table. this will reveal the back side.
-
-
-
Locate the battery on the back of your device.
-

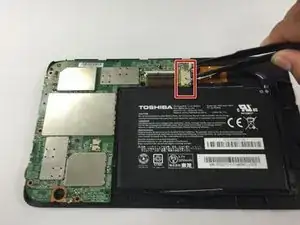

Remove the battery connector using a pair of tweezers.
-

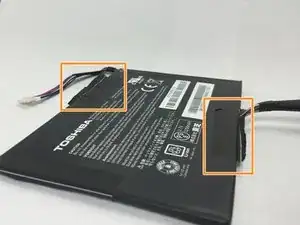

On the side of the battery peel back but do not remove the two black pieces of tape.
-
Carefully lift the battery out of the device, and set aside.
-
To reassemble your device, follow these instructions in reverse order.
