Toshiba HD-A2 Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 - 15 Minuten

Einleitung

If you find that your DVD player is overheating, use this guide to remove and replace the fan.

  1. lgCPQ5DTfS1EjXRo

    • Remove the three 6mm Phillips head screws on the back of the DVD player with a Phillips #1 screwdriver.

  2. Z3VVuyLqMyDTyUQS
    Z3VVuyLqMyDTyUQS
    LiqCpyG3BevCN6i6

    • Remove the two 3mm Phillips screws on each side of the DVD player using the Phillips #1 screwdriver.

  3. WvneBWdksIL1eYaj

    • Using your hand, gently lift the black top panel and safely place it off to the side.

  4. CoCpr2xLKfwdVXHC

    • The fan will be attached to the case, connected to the yellow circuit board.

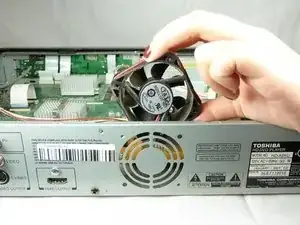

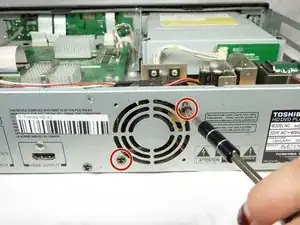

  5. VuKhODPIAkURvNgV
    VuKhODPIAkURvNgV
    jhGHARV1j1FvoKaB

    • Remove the two 7mm Phillips head screws attaching the fan to the case of the DVD player.

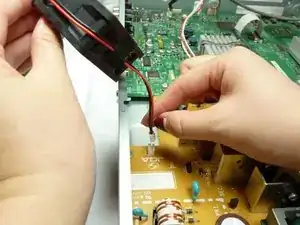

  6. XE3iJMRaxRJ2a5qo
    XE3iJMRaxRJ2a5qo
    Hian2q1dFFwclHQi

    • Use your fingers to unplug the red and black wire from the yellow circuit board to completely remove the fan.

Abschluss

To reassemble your device, follow these instructions in reverse order.
