Einleitung

Werkzeuge

  1. FbuXSVZOGunRHuF2
    FbuXSVZOGunRHuF2
    YKeHOkKF1G3ZUs62

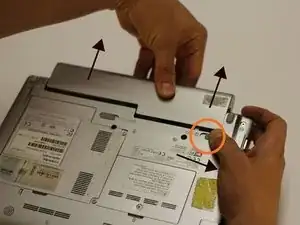

    • Start by first removing the battery.

    • Move the first release switch to the right position.

    • Move the second release switch to the right position while pulling the battery towards the top of the netbook.

  2. DyqeuvlNFvmOfDSF
    DyqeuvlNFvmOfDSF
    PgUOsiQhM2diMCrv

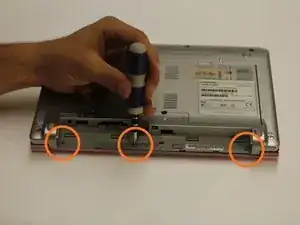

    • Using the bit driver and a Phillips #0 bit, remove the three circled screws, 5 mm in length.

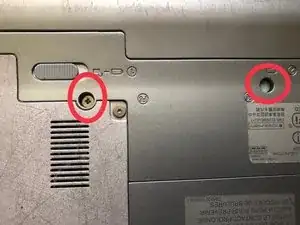

    • Using the bit driver and a Phillips #0 Bit, remove the two circled screws labelled F6. (These hold the keyboard) one screw may be under a rubber stopper

  3. OuRqFYNmHWhaChbF
    OuRqFYNmHWhaChbF
    JtQVaRBOGJyK1LbV

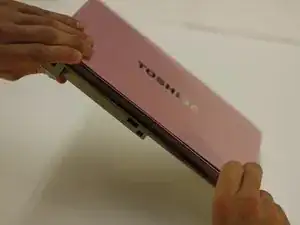

    • While holding the top of the netbook, flip the netbook over.

  4. iQ3l5xFXyFyLyHKT
    iQ3l5xFXyFyLyHKT
    PJEFxnOvHH4AYgmQ

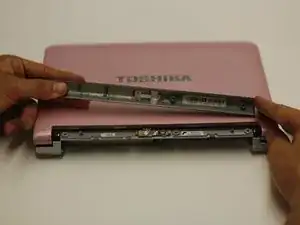

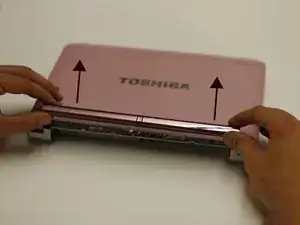

    • Carefully lift off the power bar assembly for access to the button and receiver.

  5. fgcqhLxAYZYgjCsZ
    fgcqhLxAYZYgjCsZ
    jNYUBwNegonfmKxW

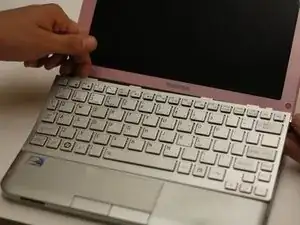

    • Use the spudger to gently pry around the keyboard. This will release the keyboard assembly from the body.

  6. OCnuiUXlQHohENUy
    OCnuiUXlQHohENUy
    k2EPGatrqSCATKne

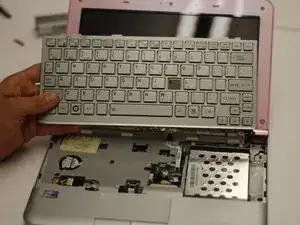

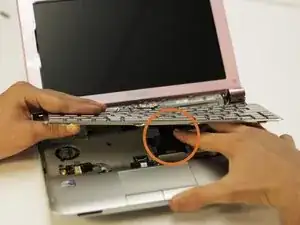

    • Reach under the keyboard and disconnect the electrical connection.

    • Lift the broken keyboard off.

  7. xuAtruDvW6BPLFAK
    xuAtruDvW6BPLFAK
    VqZSjBX331clKhb5
    RVumPI4X21diFeHO

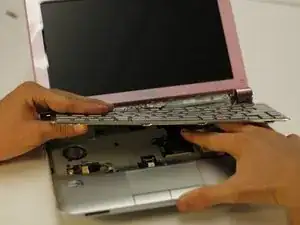

    • Reattach the new electrical connection into the old connection location.

    • Place the keyboard into the original location starting with the bottom first.

    • Gently press the keyboard down to secure it into its original location.
