Einleitung

  1. 1qK4oFeQJPJfRY43
    1qK4oFeQJPJfRY43
    S1YAU3TUHjFCiOl2

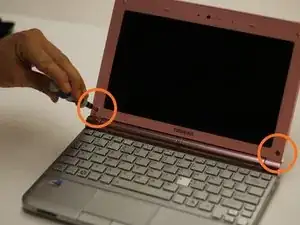

    • Use a spudger to remove the small rubber screw coverings above each retaining screw.

    • Use the bit driver with a Phillips #0 bit to remove the two 5 mm screws securing the screen bezel.

  2. Tml3SOQOdjFEdOkd
    Tml3SOQOdjFEdOkd
    gPYCx3BLQyPiRc5L
    CReCgYEIiNo5oGFY

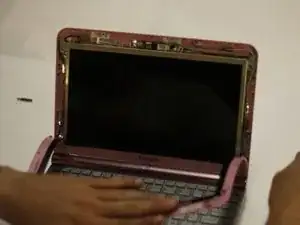

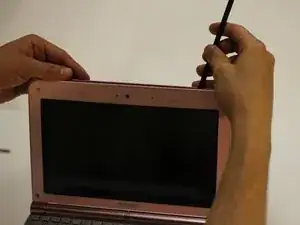

    • Using a spudger, gently pry the screen bezel to the condition of the photograph.

    • For this procedure, it is not necessary to completely removal screen bezel so in order to reduce work, bezel is just partially removed.

  3. EQ4jxR1AuIdIHMTZ
    EQ4jxR1AuIdIHMTZ
    tZwxj2gX1NOwlu3X

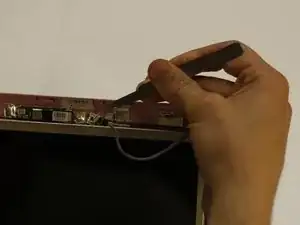

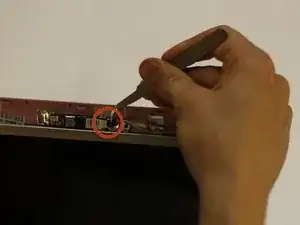

    • Using pliers, gently remove the electrical connection to the webcam by pulling the plug to the right (per orientation of the photo).

    • Allow the removed wire to hang in place but make note of alignment with respect to webcam.

    • This step is performed while holding down the bezel which is only partially detached.

  4. VRCW5QtX2YNxySHN
    VRCW5QtX2YNxySHN
    LJFcstrIwuNR6ePQ
    1KmmVkLbt6SU5TMI

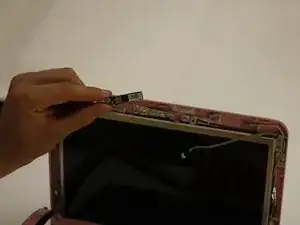

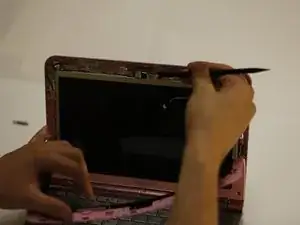

    • Use the spudger to pry each side of the webcam until it releases from its adhesive back.

  5. DO2RHWZiV5akZgC1
    DO2RHWZiV5akZgC1
    XdIxwbCSGjMjSCa5
    • Position the new webcam in the old webcam's position. The webcam must be carefully aligned in order to function properly with the bezel in place. Align the hole of the webcam assembly over the cylinder of the webcam stabilizer.

    • Reconnect the electrical connection.

  6. Gh3JHnnOgdUWoPSW
    Gh3JHnnOgdUWoPSW
    eJNmFIh3BgTnhDYw
    1GAbVqfZvAJr3IlY

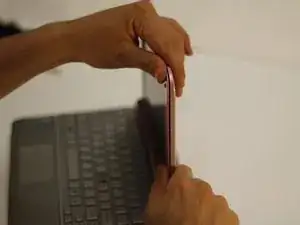

    • Gently press the front bezel back into its original position.

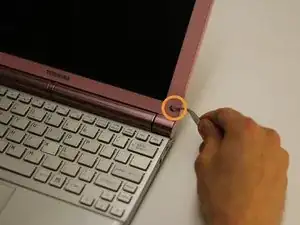

    • Using the bit driver and Phillips #0 bit, drive the two bezel retaining screws in to place.

    • Cover the screws with the small covers with tweezers.
