Einleitung

  1. elfXjDhZrCYtKEiP
    elfXjDhZrCYtKEiP
    P34H3kv6VctM2AO6
    • Before starting any repairs, make sure to power off your device.

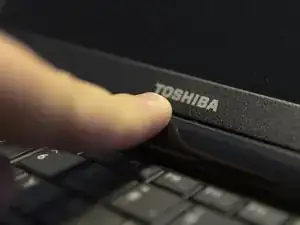

    • To shut down the Toshiba NB255-N250, follow the instructions for your operating system or press and hold the power button until the screen turns off.

  2. OJ2ToWF2cDfo6TU6
    OJ2ToWF2cDfo6TU6
    gNJnotIVQfghfAUy
    wWQ5Lj2VlWNrVUnR

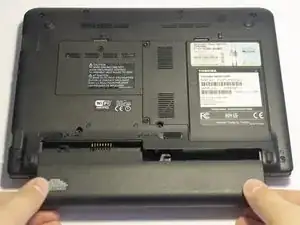

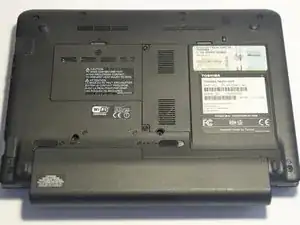

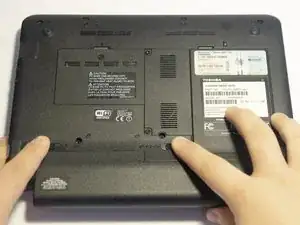

    • Move the two battery retaining tabs to the opposite sides of the device, then pull the battery straight out the back of the device.

  3. HdH1kbtUlZI1LWeZ
    • Remove the PH1 screw from the memory access panel.

    • Unlike many other access cover screws on laptops, this screw is not captive.

  4. CW2atuqAGqyWHhuB

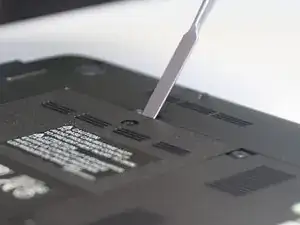

    • Use a Metal Spudger or other opening tool to remove the memory access panel.

  5. VxiqevBSCjjoKX5n
    VxiqevBSCjjoKX5n
    Pc1RUa6LdLruZVZl

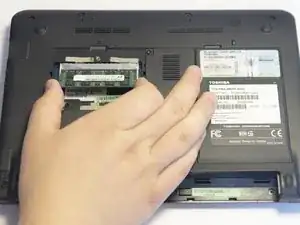

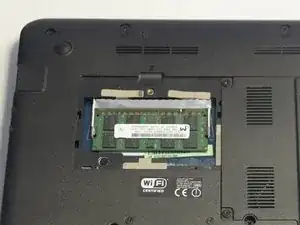

    • Remove the memory by moving the tabs on the left and right away from the ram.

    • When fully opened, the memory will pop up at a 45 degree angle. Pull the memory straight out by the sides and away from the system.

Abschluss

To reassemble your device, follow these instructions in reverse order.
