Toshiba NB305 Wifi Card Replacement

Geschrieben von: Mateo Fontana
  • Kommentare: 0
Toshiba NB305 Wifi Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 - 30 Minuten

Einleitung

We will show you how to find and remove the wifi card. This is a simple procedure and only requires a few steps.

  1. lMMCteaRVakSxube

    • Place the laptop upside down with the battery facing you.

  2. wCGiNstv3FwV3ZLV

    • Use your right hand to move latch 1 to the right to unlock the battery.

  3. dcSIFQoC5hVkPD2L
    dcSIFQoC5hVkPD2L
    kvWbiZXIt3qK6SYa

    • Use your left hand to hold latch 2 to the left.

    • Simultaneously take the battery out with your right hand.

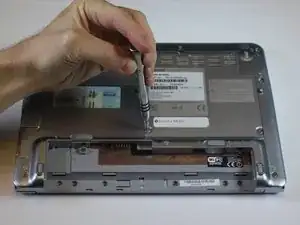

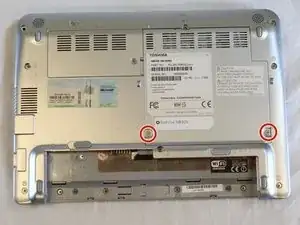

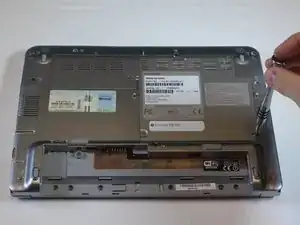

  4. khUVuGDCrp3GRSMR
    khUVuGDCrp3GRSMR
    NJFbEOBW4she5nTr
    CuEo1cgVpVmkUWfm

    • Locate the two torx T-6 screws on the back of the laptop and remove them.

    • 6mm Torx T-6 Screws

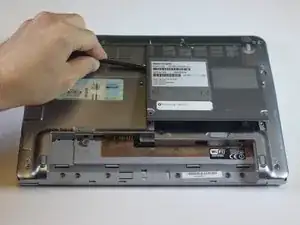

  5. O4jcFxJQNF5rPmQD
    O4jcFxJQNF5rPmQD
    L32SAsEA3xILbTxR

    • Using a spudger pry the panel up.

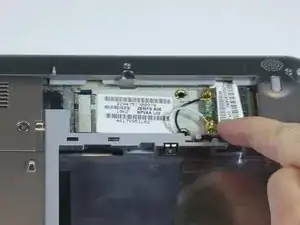

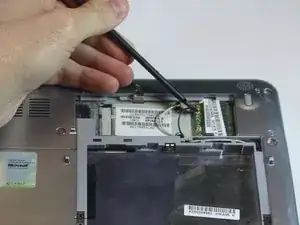

  6. ARLbmqNZfJBMbaRw
    ARLbmqNZfJBMbaRw
    qAZT1UmnycNhYlbF

    • Using a spudger pry up and off the two wire connections.

    • Note that the black wire is on the top of the card and the white is the bottom.

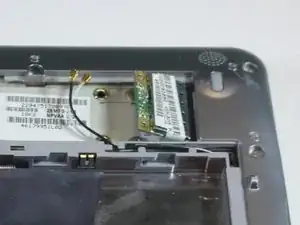

  7. TgJh41YRvVKqUwiX
    TgJh41YRvVKqUwiX
    miJVoorEFcy3JKF3

    • Remove the two Phillips 0 size screws on WIFI card.

    • Once the screws are removed the WIFI card will raise up

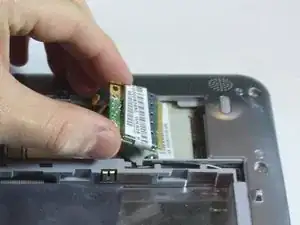

  8. IrgprBsxwBEqvVXF
    IrgprBsxwBEqvVXF
    iRIpiYHWyQEINPRM

    • Grip both sides of the wifi card with your hand.

    • Lift up on the card and pull the card out of the slot

Abschluss

To reassemble your device, follow these instructions in reverse order.
