Einleitung
Use this guide to replace the DVD drive on your Toshiba portable DVD player. Make sure your DVD player is turned off and not plugged into a power source.
Werkzeuge
Ersatzteile
-
-

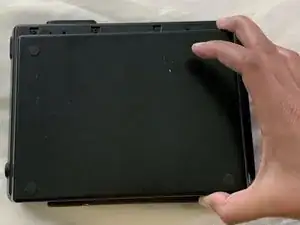

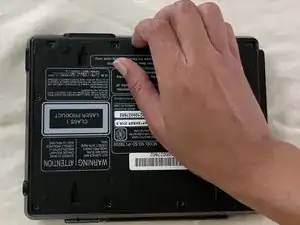

Turn the DVD player upside down.
-
Slide the lock switch to the side.
-

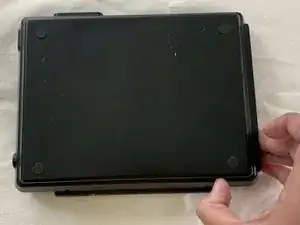

Slide the battery pack toward the lock switch and off of the back case.
-
-
-

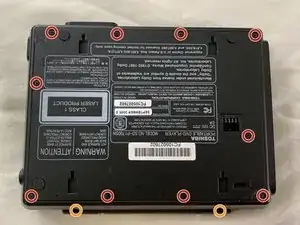

Remove the following twelve screws:
-
Ten 7 mm Phillips #00 screws
-
Two 8 mm Phillips #00 screws
-
-
-

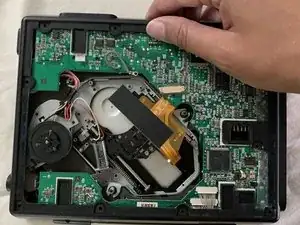

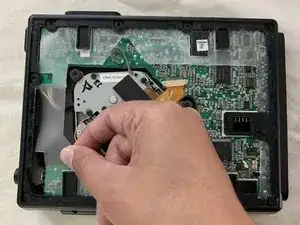

Use your fingers to pull the back case away from the body of the DVD player.
-
Remove the back case.
-
-
-

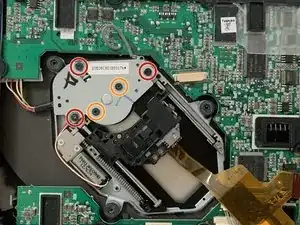

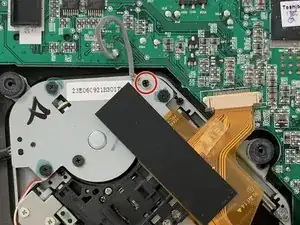

Remove the following five screws:
-
Three 4 mm Phillips #00 screws
-

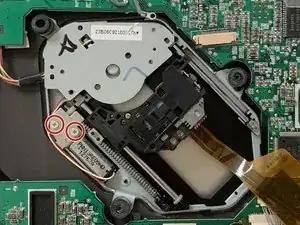

Two 2 mm Phillips #00 screws
-
-
-

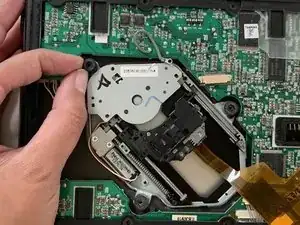

Use your fingers to pry the motherboard away from the upper case so you can access the DVD drive wires.
-
-
-

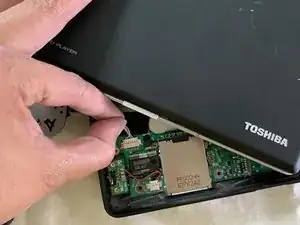

Flip the DVD player over to access the drive wires.
-

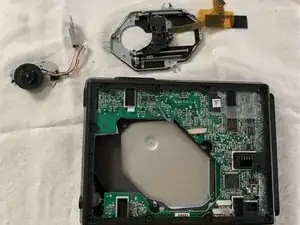

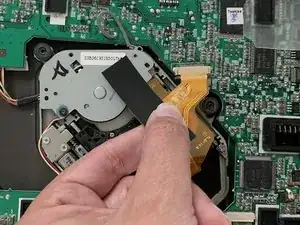

Pull the bundled cable away from the connector in the same direction the individual wires are running.
-
To reassemble your device, follow these instructions in reverse order.
