Toshiba Portege 3110CT Laptop Screen Replacement

Begin by removing the battery and flipping the laptop over to see the screws

Using a phillips head screwdriver to remove the screws that secure the back

Flip the laptop back over and open it up carefully

Lift up the bottom panel where the mouse click buttons are

Using the spudger disconnect the ribbon cable connected to the bottom of the panel

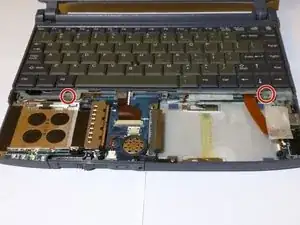

Using the same size phillips as before remove the two screws that hold the keyboard in place

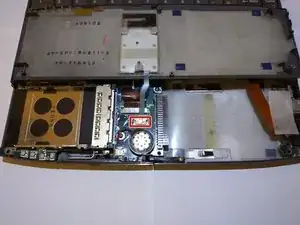

Then simply lift the keyboard up and slide it down and out

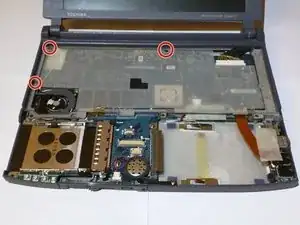

Using the phillips remove the 3 screws that hold the screen mount to the rest of the keyboard

Pull the screen off the rest of the laptop and flip it over

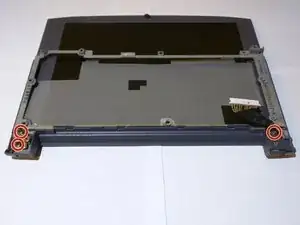

Using the phillips screw driver remove the final 3 screws securing the screen
