Toshiba Portege M300 RAM Replacement

Geschrieben von: Alison Wendt
  • Kommentare: 0
Toshiba Portege M300 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

This guide will go through the steps needed to install the laptop's RAM.

  1. BMSGuZ1iiInikUIJ

    • Turn the computer over onto its back.

  2. nFkaGI6dnXrDbwQ4
    nFkaGI6dnXrDbwQ4
    sYmLOFLvBcFPxvZ4

    • Slide the lock on the left side to the unlock position.

    • Slide the lock on the right side to the unlock position until there is a clicking sound.

  3. DKsqwwPUHAXuehK2
    DKsqwwPUHAXuehK2
    YEj3AJFWVceKeq6X

    • Remove the battery by sliding it away from the laptop.

    • Make sure the two locks from the previous step are in the unlocked position while sliding the battery away.

  4. P1Kqg1uVaQt4g4EK
    P1Kqg1uVaQt4g4EK
    mPxQO1TQmQKkyLWA
    SsqENxxFIjIZmoxP

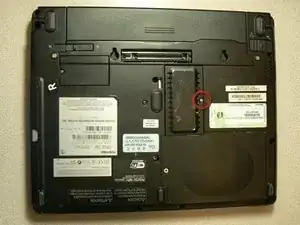

    • Turn the computer over onto the back.

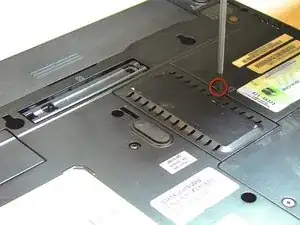

    • Use a Phillips head screwdriver to remove the screw holding the RAM cover in place, and lift the cover.

    • One 4.0 mm coarse thread screw.

  5. JKqLGVhRCCDyiY51
    JKqLGVhRCCDyiY51
    J2KknNRSkMBcU6gq
    WGYyjyFv6H4LciIP

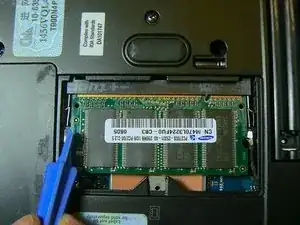

    • Use a plastic opening tool to open the silver flaps on either side of the RAM.

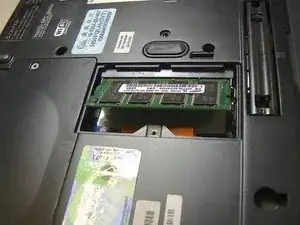

    • Once both flaps are released, the RAM should pop up at an angle.

  6. LPChIScabUlstsgP
    LPChIScabUlstsgP
    ojOUsJKSrQxemkGm

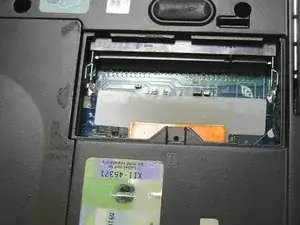

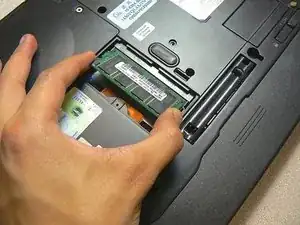

    • Grasp both sides of the RAM and pull to remove it.

Abschluss

To reassemble your device, follow these instructions in reverse order.
