Toshiba Portege M300 Wireless Card Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

15 - 30 Minuten

Einleitung

This guide will go through the steps needed to install a new wireless card.

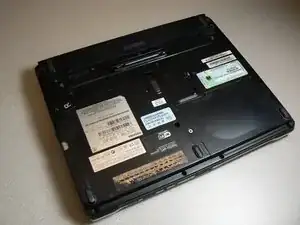

  1. BMSGuZ1iiInikUIJ

    • Turn the computer over onto its back.

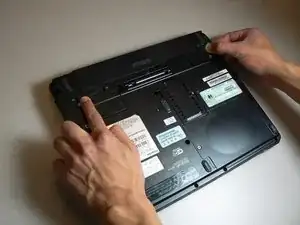

  2. nFkaGI6dnXrDbwQ4
    nFkaGI6dnXrDbwQ4
    sYmLOFLvBcFPxvZ4

    • Slide the lock on the left side to the unlock position.

    • Slide the lock on the right side to the unlock position until there is a clicking sound.

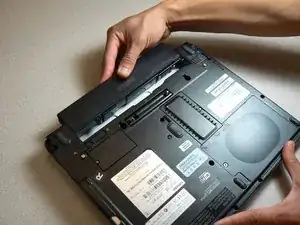

  3. DKsqwwPUHAXuehK2
    DKsqwwPUHAXuehK2
    YEj3AJFWVceKeq6X

    • Remove the battery by sliding it away from the laptop.

    • Make sure the two locks from the previous step are in the unlocked position while sliding the battery away.

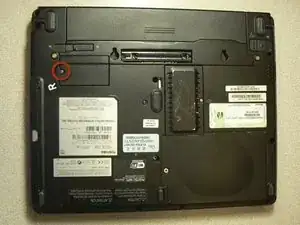

  4. tKbx1uMZ3fTonsPC
    tKbx1uMZ3fTonsPC
    JYdHMBQboZZxpTDU
    uFYwINuaQHFDDiTC

    • Turn the computer onto the back.

    • Remove the Phillips #0 screw that secures the cover to the rest of the device.

    • One 5.1 mm coarse thread screw.

    • Pull the cover forward to release it.

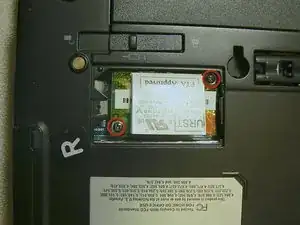

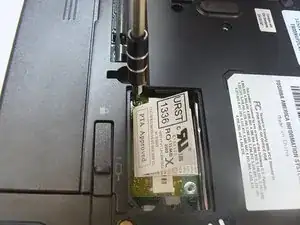

  5. N5Dp4IrZlmYaKj3E
    N5Dp4IrZlmYaKj3E
    BmCOCRZ1kYShSTXh
    RMyyfRdyeK6vDgWr

    • Use a Phillips #1 screwdriver to remove the two screws on opposite corners of the wireless card.

    • Two 4.0 mm coarse thread screws.

    • Use a plastic opening tool to gently lift the wireless card out while leaving the wire connected.

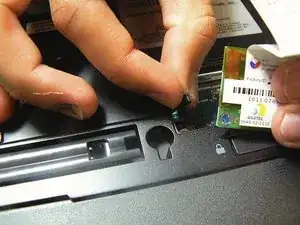

  6. AfgaHlFUA32vAKrr
    AfgaHlFUA32vAKrr
    ZrdbS2jvy2imJSC1

    • Hold the edges of the wireless card and carefully disconnect the black 3 pin connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
