Toshiba Portege M400 CD/DVD Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

In this guide, you will learn how to open your jammed CD/DVD Drive as well as how to disassemble it if necessary. This guide will also teach you what the proper and necessary tools are for this repair.

  1. lwxAnwiBFSRIn4pC

    • Make sure your computer is securely latched and closed.

    • Locate the CD drive on the right side of your Toshiba Portege M400 laptop and find a small hole right next to the CD drive button.

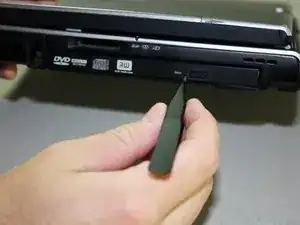

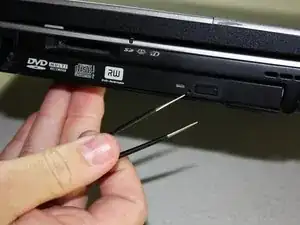

  2. MEDSeLYIiTfaIEIx
    MEDSeLYIiTfaIEIx
    pOnADCLkQs5OeR5N

    • Using the tweezers, insert them into the small hole next to the CD drive button.

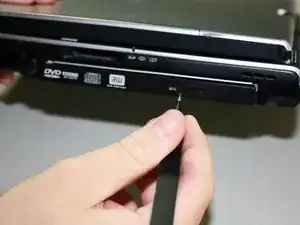

  3. SU6ATTJAujMIKNZR
    SU6ATTJAujMIKNZR
    swUlSlTNRQVrOJFn

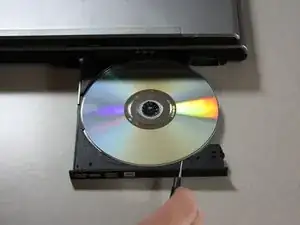

    • Push the tweezers back into the hole and grab the CD drive door with the other tweezers' appendage.

    • Pull the CD door out carefully to remove the broken or jammed disk.

    • Note: If the CD door still does not open, move on to the next step to see how to remove the CD drive entirely.

  4. ykLZgUcFbUeyDiFt

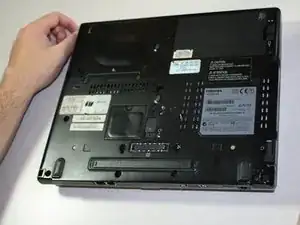

    • Flip the laptop over so its on its face.

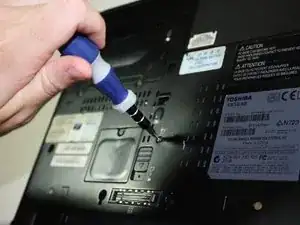

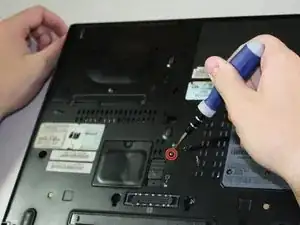

  5. QufIUQKOEeVRbFiS
    QufIUQKOEeVRbFiS
    u3psB2FlcZGLPSkF
    i3ZeNRHVM6d1msrO

    • Locate screw as seen on picture

    • Using #1 Philips head screwdriver remove the 3.8mm screw.

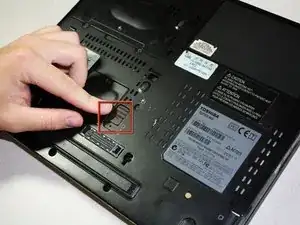

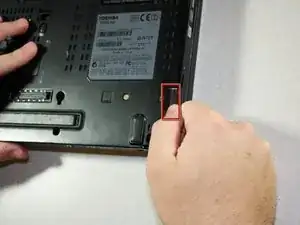

  6. wOrkRrG2qRwJUsJV
    wOrkRrG2qRwJUsJV
    H3GAZJQc4V62mS4s

    • Locate the lock switch in the center of the laptop.

    • Locate the tab on the end of the end of the CD Drive.

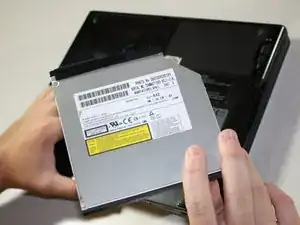

  7. DP4qEEphYwQHAOhf
    DP4qEEphYwQHAOhf
    vkHhWIBsalWRVsHT
    AuOpQFCOwvtQoqMi

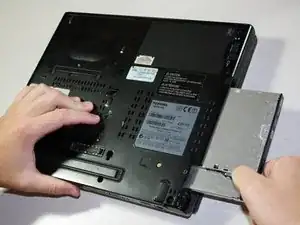

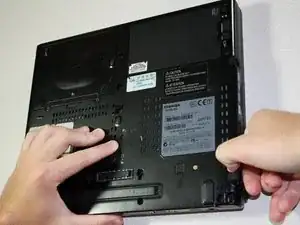

    • Push down on the lock tab and pull on the CD tab simultaneously.

    • Keep pulling on the CD drive tab until the CD drive comes all the way out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
