Einleitung
In this guide, you will learn how to disassemble and reassemble your Toshiba Portege laptop to replace a broken touchpad.
Werkzeuge
-
-

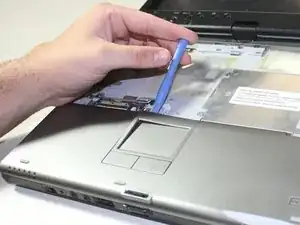

Remove the front face plate with a plastic opening tool.
-
Unscrew and remove the two 3.8mm screws labeled B3 with the #1 Phillips screwdriver.
-
-
-
Lift the keyboard toward you starting from the edge closest to the screen.
-
Gently place the keyboard on top of the track pad with the keys upside down.
-
-
-
Find the white ribbon connector (where the keyboard is still attached to the rest of the laptop).
-
Remove the screw on the metal plate that keeps the ribbon from sliding out.
-
Gently remove the metal plate and set it aside.
-
-
-

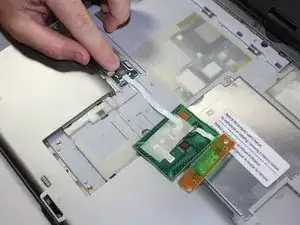

Dislodge the white ribbon connector from the two clips holding it in place using the plastic opening tools.
-
Pull out the white ribbon connector with your fingers.
-
-
-

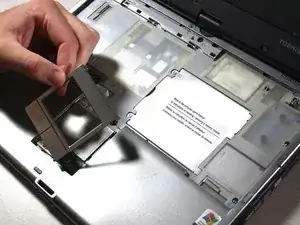

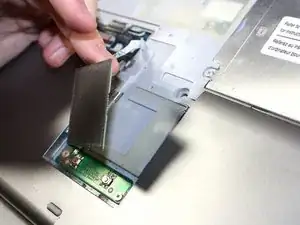

Use a plastic opening tool to carefully remove the cover of the touchpad.
-

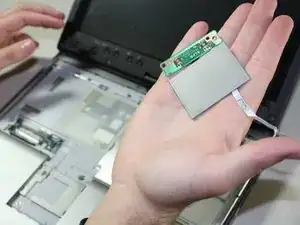

Remove the one 1/2" inch screw on the backside of the laptop.
-
To reassemble your device, follow these instructions in reverse order.
