Toshiba Portege R700-S1312 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

Keine Schätzung

Einleitung

This guide will help Toshiba users replace or add RAM to their laptop devices.

  1. 2vg2o4WUIiPlYNpN

    • Locate the battery on the backside of the laptop. The battery is usually located at the bottom.

  2. SBlp4hJD2Px31SZB

    • Locate the battery lock button and push it towards the unlock position.

  3. C42QscVeWC5M1NAw
    C42QscVeWC5M1NAw
    rmYfivbLYppehNiw
    hkhPkVTGZiRKVRgc

    • Hold the next lock in the unlock position. Simultaneously pull the battery towards you.

  4. HTf6JqYa2V6IkHnB

    • Flip the laptop over.

  5. w4OFRcCQbees6ie5

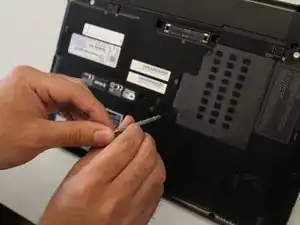

    • Using a Phillips #00 Screwdriver unscrew the 2 40mm screws that are located on the plate covering the RAM.

  6. DYJUVUSUdZlEutAp

    • Remove the plate covering the RAM.

  7. Z1YTjdkrPCVwcA2d

    • Pull the sides holding the RAM in place until there is a slight pop.

  8. tWViQlQLVihcyp6R

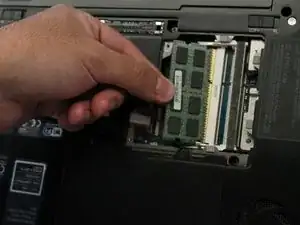

    • The RAM stick will lift up on its own. Simply remove it.

  9. H4pjFmHECWVe3MFv

    • Place new RAM into the RAM drive and gently press until there is a slight pop.

Abschluss

To reassemble your device, simply follow steps 1-3 in reverse order.
