Einleitung

  1. uTL5ioAbYXswiJWx
    • Power off your machine and turn it over. Locate the RAM panel on the back of the laptop.

  2. 3ejnDXg6KLaxUFOE
    3ejnDXg6KLaxUFOE
    EkvS3KL11UKUUw2S

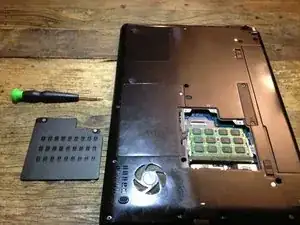

    • Using the small Phillips head screwdriver, remove the two screws highlighted in yellow.

    • Remove the panel by lifting from the red indicated area.

  3. tmPkjDMFIdODrUIt

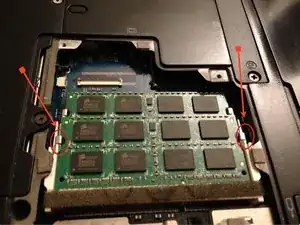

    • Ground yourself appropriately by touching a metal object. Locate the tabs on either side of the top RAM module marked by the red arrows. Pull them apart simultaneously to unlock the RAM module.

  4. BwENVyp2hRNYbCcb
    BwENVyp2hRNYbCcb
    nTB4Ae4WkKGsXLn5

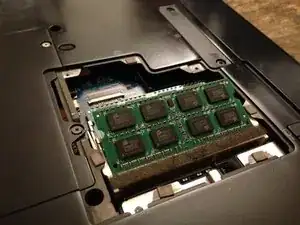

    • After freeing the RAM by pulling the tabs, it will pop up and can be pulled directly out. Repeat removal steps for lower RAM step if applicable.

  5. gOZ4onBMBgRUyAIE
    gOZ4onBMBgRUyAIE
    Pl34ccxkeRFYXy1C
    5PBRXlwoGdPNHwsG

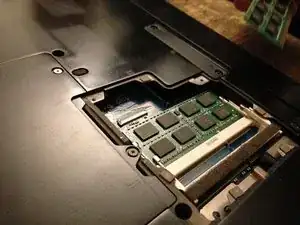

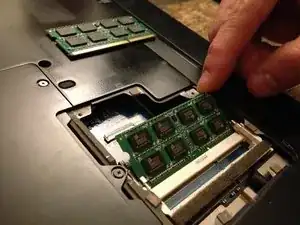

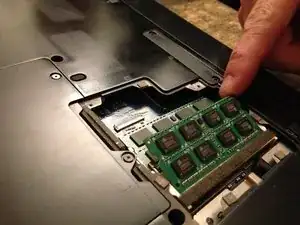

    • To insert the first new RAM module, locate the lower RAM bay and place the module diagonally into the slot. Push the module down into the laptop until it snaps into place. Repeat this step for the top module.

  6. TWvJh4JVZIfDxtup

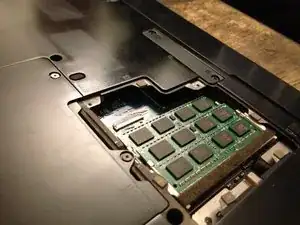

    • Once the RAM is installed flush to the laptop backing, insert and screw in cover. You have now completed the replacement.
