Toshiba Portege R835-P56X HDMI Port Replacement

Geschrieben von: Anay Sanchez
  • Kommentare: 0
Toshiba Portege R835-P56X HDMI Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

With this guide, you will be able to replace the HDMI port on the Toshiba Portege R835-P56X. Before you begin this process, refer back to the Battery Replacement Guide in order to take out the battery.

  1. amLIwIe1xYdcRLEj

    • Place the laptop with the battery facing up

  2. lS1KZELFtuZRMWOk
    lS1KZELFtuZRMWOk
    EmpKIqD4XXNowAaH
    fBCtJsIR2wEUC6lO

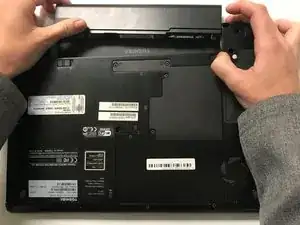

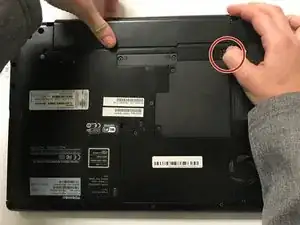

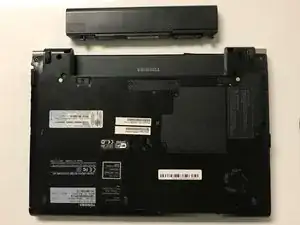

    • Take out the battery to avoid getting electrocuted.

  3. UcAhRrckoRmIUUei

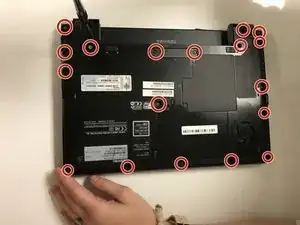

    • Use the screwdriver to unscrew 18 screws.

    • Place them to the side for the reassembly process.

  4. nGwdZSDtmMaplh5U

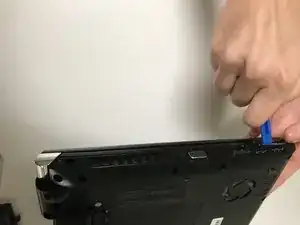

    • Use the plastic tool to help pry the back off of the laptop

  5. eLtROJBCMESxMjHP

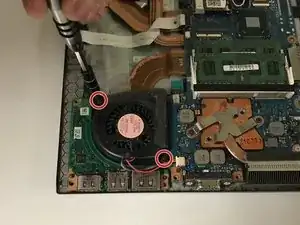

    • Remove the fan by unscrewing the screws with the screwdriver

    • Place the screws aside for reassembly process.

  6. IQFdEAipgt3n6Wfo
    IQFdEAipgt3n6Wfo
    TMQIquT2cprFbucU
    ckaOdfrLWgdPVfgk

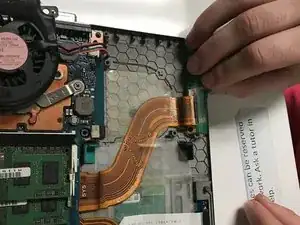

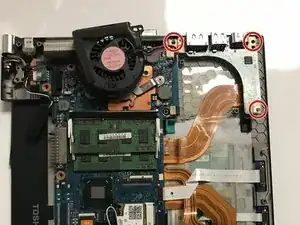

    • Locate the HDMI port.

    • Unscrew the screws using the screwdriver.

    • Pull the HDMI port off by gently holding the orange band and pulling the HDMI port at the same time.

Abschluss

To reassemble your device, follow these instructions in reverse order.
