Toshiba Portege R835-P56X Speaker Replacement

Geschrieben von: Anay Sanchez
  • Kommentare: 0
Toshiba Portege R835-P56X Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

Keine Schätzung

Einleitung

With this guide you will be able to replace the speakers of your Toshiba Portege R835-P56X.

  1. 1SoDySXPl3Ly2DfK

    • Turn laptop with the back cover facing up .

    • Make sure the laptop is unplugged and powered off before beginning.

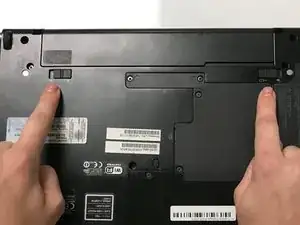

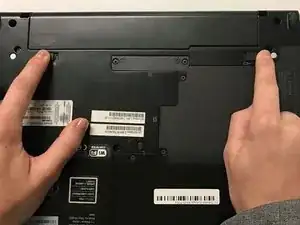

  2. ckGGh3UeDjNk6PqX
    ckGGh3UeDjNk6PqX
    VRXCCfBZbWFVZlEj

    • Unlock the clips by pulling towards the unlock.

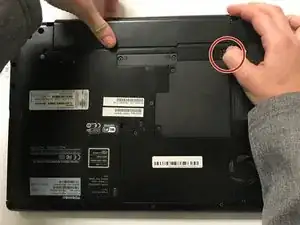

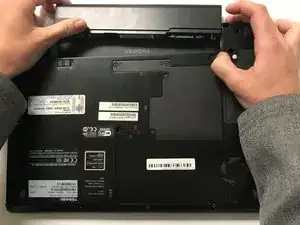

  3. QeZYPCk5IWELYqEM
    QeZYPCk5IWELYqEM
    xpCMEGEt3HTjB6IJ
    peXxZAbF4LRHlxmT

    • Holding the unlock clips push the battery away from the laptop.

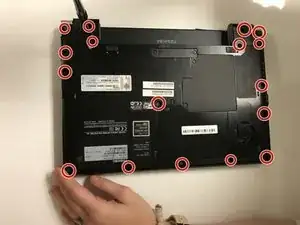

  4. 554sdjCUTdQqgSKV

    • Remove the screws from the back of the laptop

    • you should have removed 18 screws, make sure to keep these in a safe place as you will need them for reassembly.

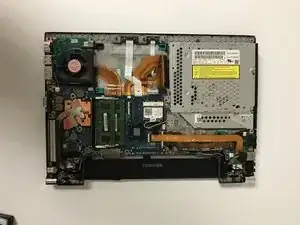

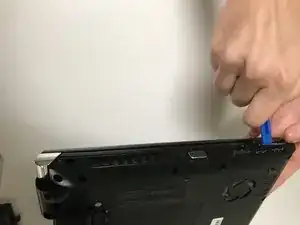

  5. ruGvHUZfPlsCWrTV
    ruGvHUZfPlsCWrTV
    kNcPOSR6qiRtsiFy

    • Using the blue prying plastic tool remove the back cover.

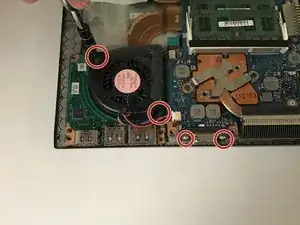

  6. IREATcRkxXWTYkHi

    • Remove the screws from the fan and side ports

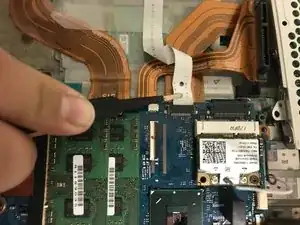

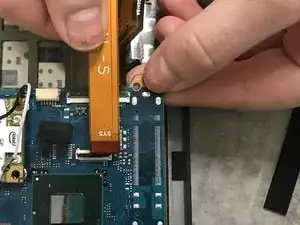

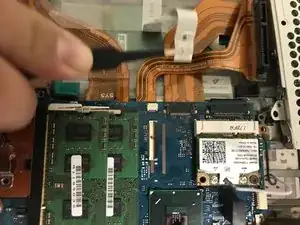

  7. 1INOfTmuCGWmjX3v
    1INOfTmuCGWmjX3v
    W4enHPbBqPgYkANJ
    d1CBhfl5p5SgAyUD

    • Remove the white and orange cables attached by pulling out the cables

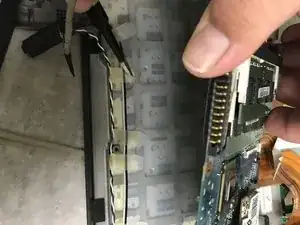

  8. MJOH2Q5MU4WQQOb2
    MJOH2Q5MU4WQQOb2
    hWXGiQbYHJgxx6oX

    • locate the speakers

    • Gently lift the motherboard to release the speaker cables

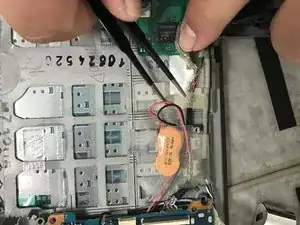

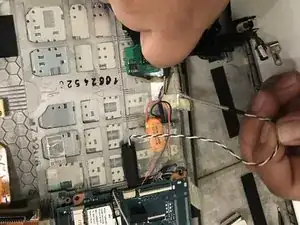

  9. j2eM3tgiCsPEOnRD
    j2eM3tgiCsPEOnRD
    wgGHM4KrplUHbiKp

    • Using the tweezers, gently remove the tape being used to hold down the speaker cables.

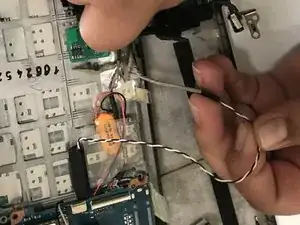

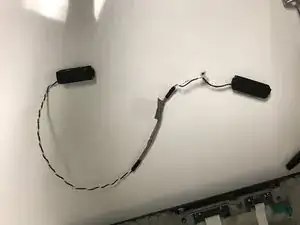

  10. IaMXAJbAJnTLjfxR
    IaMXAJbAJnTLjfxR
    FMxVCeqdOCPJOy3y

    • Once the cable had been released you have successfully removed the speakers!

Abschluss

To reassemble your device, follow these instructions in reverse order.
