Einleitung

This guide will show you how to correctly replace a Toshiba Portege R-835 P88 screen.

  1. dNrKRX4TSLRHsQcX
    • Remove the battery by pressing the two buttons inward and pulling the battery out.

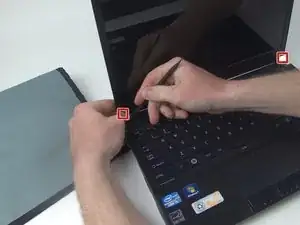

  2. b6lfnPMnynUEXnOb
    • Remove the end caps located on the left and right corners below the screen.

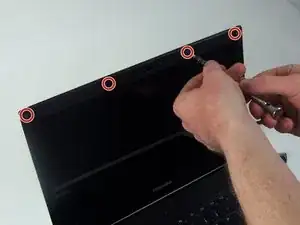

  3. XbKp6EEojLEOvmoO
    • Remove the square rubber caps on top of the screws

    • Remove the 4 mm screws at the top

    • remove the two 6 mm screws that were under the chrome caps at the bottom.

  4. X3gDCOlFCLPtWsBq
    • Remove the plastic bezel by lightly prying on it. It will pop when it starts to come loose.

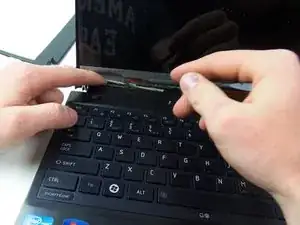

  5. v6SHs4a62L5GKrSa
    v6SHs4a62L5GKrSa

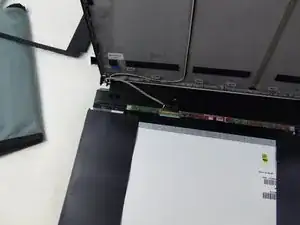

    St3NVbblplYLWUav
    • Remove tape from around cord attached to the bottom of the screen.

    • Place the screen on top of the keyboard

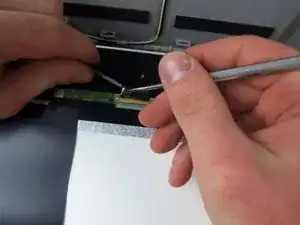

  6. R5gIUAtMWqw2GVpF
    R5gIUAtMWqw2GVpF

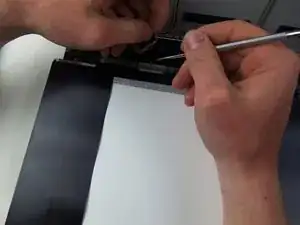

    bXWNwArD6Wa2HJhy

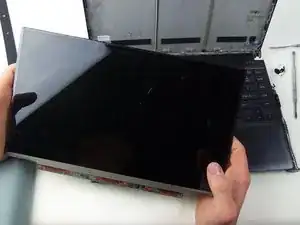

    4qWYC5OErrVoNBlJ
    • Remove the cord from the screen by cutting the tape where the two fittings meet. After that pull them apart.

Abschluss

To reassemble your device, follow these instructions in reverse order.
