Toshiba Portege Z835-P330 Battery Replacement

Geschrieben von: Dominic Whiting
  • Kommentare: 6
Toshiba Portege Z835-P330 Battery Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

20 Minuten

Einleitung

This guide will teach you how to replace the battery of the Toshiba Portege Z835-P330.

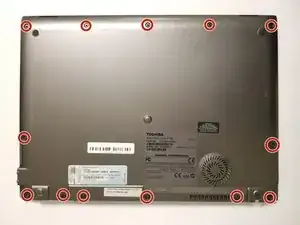

  1. FSRWUAqKDFZRVT5P

    • Remove the thirteen 1.4mm screws on back of device using a Phillips #2 screwdriver.

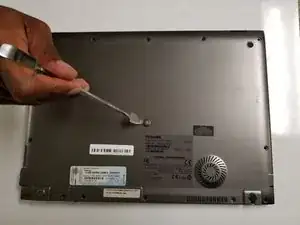

  2. Ng3CZIZqbosbuwrt

    • Locate hidden screw found in the middle of back hardcover.

    • Found under rubber covering shown in picture.

    • Remove the single Torx Security screw using a TR7 screwdriver.

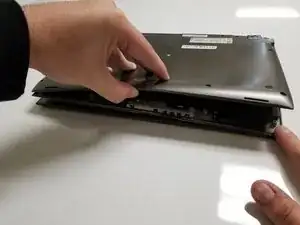

  3. CsWrZDVKEVs5ENCy

    • Peel off hardcover to expose interior of device.

    • Force may be required but hardcover should detach smoothly.

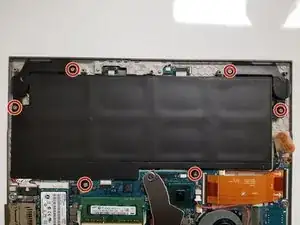

  4. OyKRbtnjyfOqsRF2

    • Remove the six 1 mm screws using a Phillips #1 screwdriver.

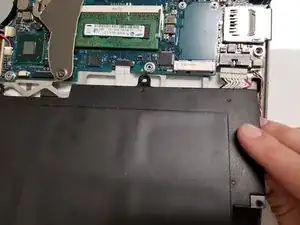

  5. kJZlZpUUIhoMBEOt

    • Remove the white plug connected to the battery by gently pulling it out of the socket.

    • Plug should easily detach without force.

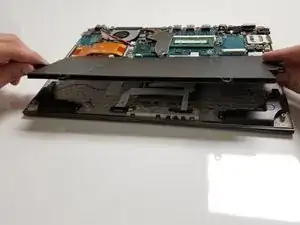

  6. BEgFQHLd2vEHKLBZ

    • Lift battery up by its sides, and it should easily come off.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Dominic Whiting

Mitglied seit: 08/02/18

897 Reputation

6 Kommentare

These steps also work for the Z935-P300. NOTE: the center screw in step two is a Torx Security TR7.

Jim Flattery -

Will it lose it’s memory when the power and battery are disconnected? Do I need to back it up before I do this? My battery is so dead that the laptop shuts down after just a few minutes without the ac cord plugged in.

Thank you!

pat_brady_pb@yahoo.com -

I suspect you have already completed your repair and now know the answer, however, in the event that you are still waiting on a response. The short answer is no, the storage drive will not loose data when changing the battery. Despite this, it is always wise to have a backup.

Jim Flattery -

Could anyone please tell me which type of screws are these ?

lourencopintodasilva -

Which screws are you referring to? I believe they all have their details size and type listed above. Is there one in particular you need further detail on?

Jim Flattery -

trying to find a CMOS RTC Battery for Toshiba z830 p370, so many options but I don’t know which one is the proper one, I will appreciate any help
