Einleitung

  1. vmkr1UCARnmVQVFX

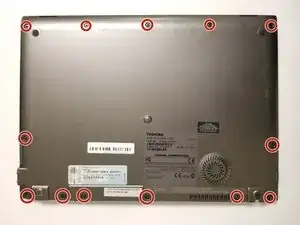

    • Remove the thirteen 1.4mm screws using a Phillips #2 screwdriver.

  2. Kij1wQ2WIowXHCNL

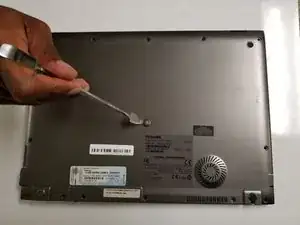

    • Locate hidden screw found in the middle of back hardcover.

    • Found under rubber covering shown in picture.

    • Remove the single Torx Security screw using a TR7 screwdriver.

  3. s5SZCUSDdKAnsrPK
    • Peel off hard cover to expose interior of device.

  4. Fn3PZNoSykwK6JcO
    • Find the solid-state drive located below the battery, and next to the RAM.

    • Unscrew the two 1mm screws located at the top of the solid-state drive with a Phillips #1 screwdriver.

  5. jdLYAWa6noP4aRFO

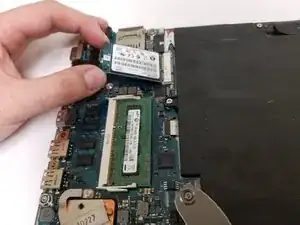

    • Pull the solid-state drive from its socket

    • The solid-state drive should automatically pop-up from its housing once the screws are removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
