Toshiba SD-K740 Disc Drive Replacement

Geschrieben von: Joe Murphy
  • Kommentare: 0
Toshiba SD-K740 Disc Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

11

Zeitaufwand

10 Minuten

Einleitung

This guide gives instructions on how to remove the disc drive of the Toshiba SD-K740 DVD player.

  1. Vyud1h2MWuS2TpZx

    • Unplug the DVD player before beginning.

    • Remove the three 7.7 mm screws from the back panel using a Phillips #0 screwdriver.

  2. qjIqF5xWSxeWSjY2
    qjIqF5xWSxeWSjY2
    yr4UK2hKnPb3nVEI

    • Turn the DVD player on its side.

    • Remove the 7.7 mm screw.

    • Flip the DVD player onto its other side.

    • Remove the 7.7 mm screw.

  3. XFCru5vZWdaO1Vi5

    • Flip the DVD player over onto its front face.

    • Remove the back panel by lifting up and pulling it towards yourself.

  4. KayvR3GonC6IDBJE

    • Flip the DVD player so its top is sitting on your working surface.

    • Lift and push away the two tabs located in the middle of the player.

    • The front panel will not detach during this step, so do not force it.

  5. istnxiFT1QvKKWB1

    • Flip the DVD player on its side.

    • Lift and slide forward the single tab on the side.

    • The front panel will not detach during this step, so do not force it.

  6. IQfbVfABamR5P3aX
    IQfbVfABamR5P3aX
    xNPjRTEfbrabbDZK

    • Grasp the front panel and pull forward to your right to remove it.

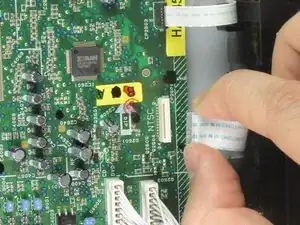

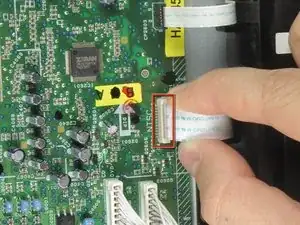

  7. BwPuqAZKnriF4JBO
    BwPuqAZKnriF4JBO
    LFjJIgmpvWuGGXRf

    • Remove the first of three ribbon cables on left hand side of disc drive by pulling vertically.

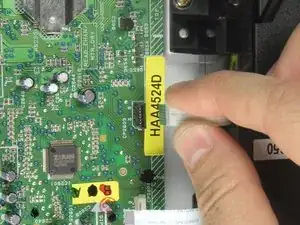

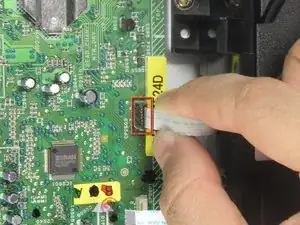

  8. lwN6CK6wTe3RgM2t
    lwN6CK6wTe3RgM2t
    ZQIQkZGG5BIAQkCJ

    • Remove the second of three ribbon cables on left hand side of disc drive by pulling vertically.

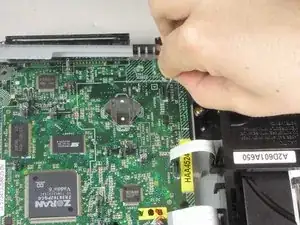

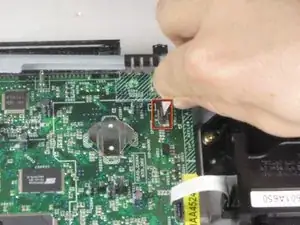

  9. PJiWaEC1aNBK1jRN
    PJiWaEC1aNBK1jRN
    6c16QNtSb1SvfyAe

    • Remove the third of three ribbon cables on left hand side of disc drive by pulling vertically.

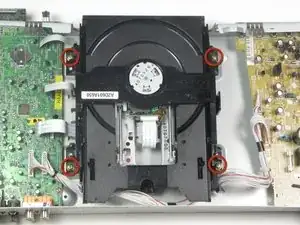

  10. BLxBPhBpPEHe2T1X

    • Remove the four screws holding the disc drive in place using a #0 Phillips screwdriver.

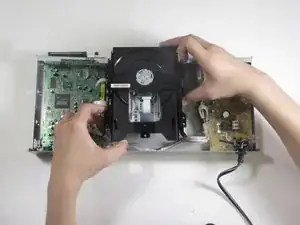

  11. ECgiS4AuGtpCYdHJ

    • Lift disc drive vertically to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.
