Toshiba SD-K740 Front Flap Tray Door Spring Replacement

Geschrieben von: John Lokker
  • Kommentare: 5
Toshiba SD-K740 Front Flap Tray Door Spring Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

10 Minuten

Einleitung

This guide gives instructions on how to remove the spring connected to the disc drive front flap of the Toshiba SD-K740 DVD player.

  1. Vyud1h2MWuS2TpZx

    • Unplug the DVD player before beginning.

    • Remove the three 7.7 mm screws from the back panel using a Phillips #0 screwdriver.

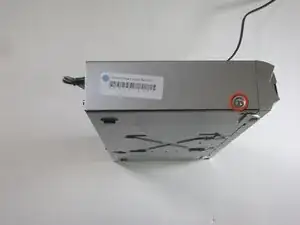

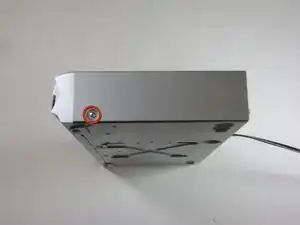

  2. qjIqF5xWSxeWSjY2
    qjIqF5xWSxeWSjY2
    yr4UK2hKnPb3nVEI

    • Turn the DVD player on its side.

    • Remove the 7.7 mm screw.

    • Flip the DVD player onto its other side.

    • Remove the 7.7 mm screw.

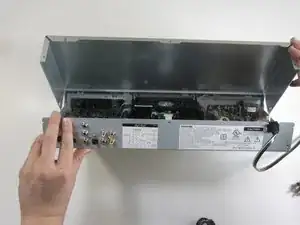

  3. XFCru5vZWdaO1Vi5

    • Flip the DVD player over onto its front face.

    • Remove the back panel by lifting up and pulling it towards yourself.

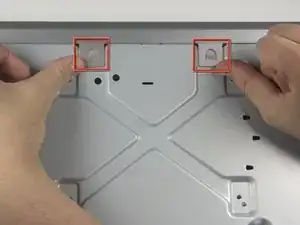

  4. KayvR3GonC6IDBJE

    • Flip the DVD player so its top is sitting on your working surface.

    • Lift and push away the two tabs located in the middle of the player.

    • The front panel will not detach during this step, so do not force it.

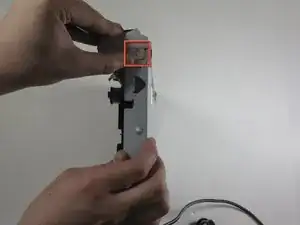

  5. istnxiFT1QvKKWB1

    • Flip the DVD player on its side.

    • Lift and slide forward the single tab on the side.

    • The front panel will not detach during this step, so do not force it.

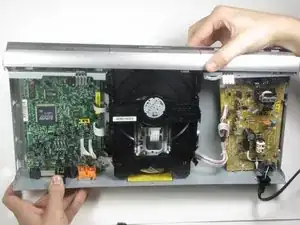

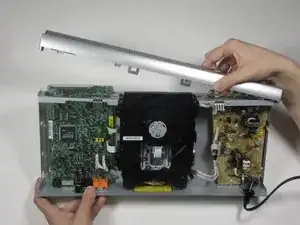

  6. IQfbVfABamR5P3aX
    IQfbVfABamR5P3aX
    xNPjRTEfbrabbDZK

    • Grasp the front panel and pull forward to your right to remove it.

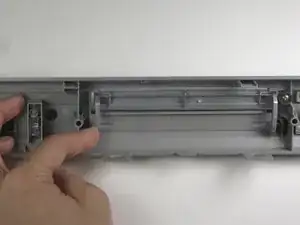

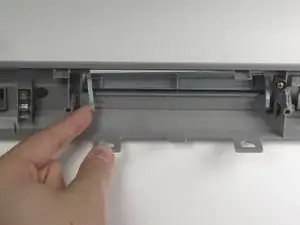

  7. E5C2HOrQYcstIx4m
    E5C2HOrQYcstIx4m
    NEJALmoOO1cwUGsu

    • On back side of front panel very carefully apply pressure to the left hand side of the flap hinge.

    • There is just enough tolerance in the plastic to allow removal, be careful of brittle plastic.

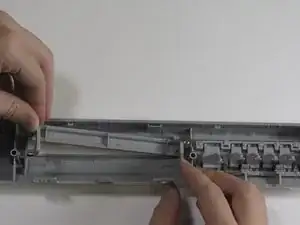

  8. LVntEeFukmtGtQ3L

    • Once the peg is free from the left restraint, carefully remove the left part of the flap.

    • Carefully remove the right peg from the restraint.

    • Do not pull away from the front panel because the spring is still attached.

    • Do not force the plastic.

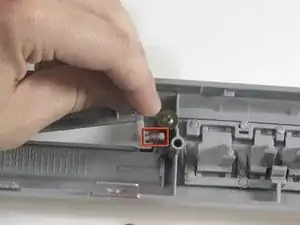

  9. DdrssXlcsZYskgSD

    • Remove the spring from the end of the right peg by pulling the door away from the spring.

    • Do not pull away from the front panel until the spring has been removed from the flap.

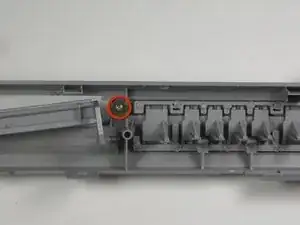

  10. UAhV1VsoIwRfMXEb

    • Remove the .384 inch screw holding the spring to front panel.

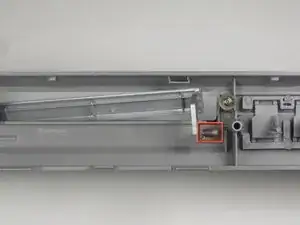

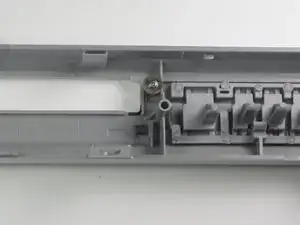

  11. PeMGamHWjQgBjPKj
    PeMGamHWjQgBjPKj
    Ah3ICwdiaLje6JiA

    • Slide the spring off of the underlying peg.

Abschluss

To reassemble your device, follow these instructions in reverse order.
